STANDARDACCESSORIES:
3— JAW CHUCK/Φ 325&FLANGE,
DEAD CENTERS,
REDUCTION SLEEVE,
MAINTENANCE KIT,
FOUNDATTON BOLTS/NUTS,
LEVEL BLOCKS,
MACHINE TOOL MANUAL. [CENTERS DISTANCE IS MORE THAN 2000MM/(INCLUDE 2000MM)FOR(Φ 200
STEADY REST Φ 20— 140 FOLLOW REST
OPTIONAL ACCESSORIES:
4— JAW CHUCK&FLANGE,
FACE PLATE, DRIVE PLATE,
STEADY REST(LESS THAN 2000MM),
FOLLOW REST(LESS THAN2000MM), Φ 130 SPINDLE BORE,
ELECTRIC TURRET,
ELECTRIC QUILL,
TAPER TURNING ATTACHMENT
| Model | Unit |

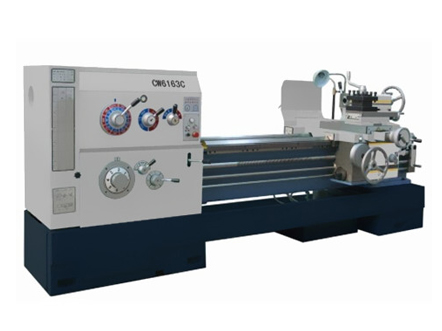

CW6163C CW6263C |
CW6173C CW6273C |
CW6183C CW6283C |
CW6193C CW6293C |
|
| Swing over bed | mm | 630 | 730 | 830 | 930 | |
| Swing in gap | mm | 800 | 900 | 1000 | 1100 | |
| Swing over cross slide | mm | 350 | 450 | 550 | 650 | |
| Distance between centers | mm | 750,1000,1500,2000,3000,4500,6000 | ||||
| Length in gap from face plate | mm | 300 | ||||
| Spindle nose | Cll or D11 | |||||
| Spindle bore | mm | 105,130 | ||||
| Spindle speeds | rpm/steps | 10_800/18 | ||||
| Cross slidle travel | mm | 480 | ||||
| Top rest travel | mm | 225 | ||||
| Rapid traverse | mm/min | Axis Z:3200, Axis X:1900 | ||||
| Quill diameter | mm | 90 | ||||
| Quill travel | mm | 260 | ||||
| Quill taper | MT5 | |||||
| Bed width | mm | 550 | ||||
| Metric threads | mm/kinds | 1_240/53 | ||||
| Inch threads | tpi/kinds | 30_2/31 | ||||
| Module threads | mm/kinds | 0.25_60/46 | ||||
| Diametral pitch threads | Lpi/kinds | 60_0.5/47 | ||||
| Main motor power | kw | 11 | ||||
| Packing size | Length | mm | 3460,3390,3795,4330,5310,6810,8310 | |||
| Width | mm | 1400 | ||||
| Heigth | mm | 2000 | ||||
| Gross weight | Kg | 4250 | 4450 | 4650 | 4900 | |
| 4500 | 4700 | 5100 | 5300 | |||
| 5000 | 5200 | 5600 | 5800 | |||
| 5500 | 5700 | 6100 | 6300 | |||
| 6200 | 6400 | 6600 | 6900 | |||
| 7300 | 7500 | 7600 | 7900 | |||
| 8300 | 8500 | 8600 |
8700 |
|||
