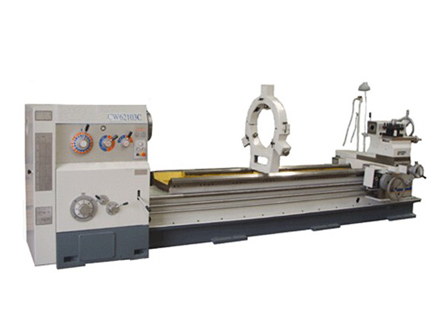

Model |
Unit |
Model |
||||
|
CW62103C |
CW62123C |
CW62143C |
CW62163C |
CW62183C |
||
|
Swing over bed |
mm |
1030 |
1230 |
1430 |
1630 |
1830 |
|
Swing in gap |
mm |
1200 |
1400 |
1600 |
1800 |
2000 |
|
Swing over cross slide |
mm |
700 |
900 |
1100 |
1240 |
1440 |
|
Distance between centres |
mm |
1500.2000; 3000; 4500; 6000 |
||||
|
Length in gap from face plate |
mm |
380 |
||||
|
Spindle nose |
|
C11 or D11 |
||||
|
Spindle bore |
mm |
105, 130 |
||||
|
Spindle speeds |
rpm/steps |
10-800/18 7-576/18 6-480/18 |
||||
|
Cross slide travel |
mm |
615 715 815 915 |
||||
|
Top rest travel |
mm |
225 300 |
||||
|
Rapid traverse |
mm/min |
Axe Z: 3200, Axe X: 1400 |
||||
|
Quill dismater |
mm |
120 |
||||
|
Quill travel |
mm |
270 |
||||
|
Quill taper |
|
MT6 |
||||
|
Bed width |
mm |
610 |
||||
|
Metric threads |
mm/kinds |
1-240/53 |
||||
|
Inch threads |
tpi/kinds |
30-2/31 |
||||
|
Module threads |
mm/kinds |
0.25-60/42 |
||||
|
Diametral pitch threads |
tpi/kinds |
60-0.5/47 |
||||
|
Longitudinal feeds |
mm/r |
0.07-16.72 |
||||
|
Cross feeds |
kw |
0.04-9.6 |
||||
|
Main motor power |
kw |
11 |
||||
|
Packing size (mm) |
Length |
3840; 4340.5170; 6670; 8290 |
||||
|
Width |
1700 |
1700 |
1850 |
2000 |
2200 |
|
|
Height |
1980 |
2080 |
2220 |
2280 |
2380 |
|
|
Gross weight |
Kgs |
5900 |
6500 |
7200 |
7800 |
8600 |
|
6250 |
6850 |
7400 |
8200 |
9000 |
||
|
6900 |
7500 |
8100 |
8900 |
9700 |
||
|
8000 |
8600 |
9000 |
9800 |
10600 |
||
|
9000 |
9600 |
10000 |
10500 |
11200 |
||
STANDARD ACCESSORIES
3-jaw chuck& flange. dead centers, reduction sleeve, maintenance kit, foundation bolts/nuts, level blocks, 4-Jaw chuck& flange, drive plate, face plate, steady rest, follow rest, working light, hand brake, coolant system"
