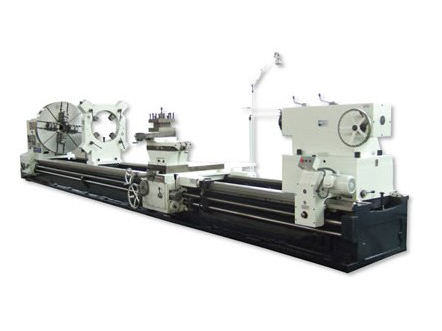

CW61125H
These lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
|
SPECIFICATION |
Model |
||||
|
CW61125H |
CW61140H |
CW61160H |
CW61180H |
CW61190H |
|
|
Max.swing diameter over bed |
1240mm |
1440mm |
1640mm |
1840mm |
2040mm |
|
Max.swing diameter over carriage |
900mm |
1050mm |
1250mm |
1450 |
1650mm |
|
Width of bed |
1100mm |
||||
|
Max.length of workpiece |
1000 -12000mm |
||||
|
The bed saddle longitudinal maximum sroke |
1000 -12000mm |
||||
|
The top two largest bearing |
18t |
||||
|
Spindle nose |
A15 |
||||
|
Sindle bore diameter |
130mm |
||||
|
Taper of spindle bore |
Metric No.140 |
||||
|
Range of spindle speed |
3.15-315r/min 21kinds 3.5-290r/min 12kinds |
||||
|
Spindle front bearing inner diameter |
200mm |
220mm |
|||
|
Longitudinal feeds range |
0.1-12r/min 56 kinds |
||||
|
Transversal feeds range |
0.05-6mm/r 56kinds |
||||
|
Metric thread range |
1-120mm 44kinds |
||||
|
Inch thread range |
3/8-28TPI 31kinds |
||||
|
Module threads range |
0.5-60mm 45kinds |
||||
|
Pitch threads range |
1-56TPI 25kinds |
||||
|
Taper of Tailstock sleeve |
Metric No.80 |
||||
|
Traver of tailstock sleeve |
300mm |
||||
|
Diameter of tailstock sleeve |
260mm |
||||
|
Main motor power |
30kW |
||||
|
Rapid motor power |
1.5kW |
||||
|
Coolant pump power |
0.125kW |
||||
Stand Accessories
|
|
CW61125H CW61140H CW61160H |
CW61180H CW61190H |
|
1 |
heavy chuck Φ 1250mm 1set |
|
|
2 |
steady rest Φ120--480mm（for more than 2m) 1set |
steady rest Φ400--700mm（for more than 2m) 1set |
|
3 |
follow restΦ50--220mm（for more than 2m) 1set |
has not |
|
4 |
Morse No.6 Center 1set |
|
|
6 |
center sleeve 1set |
|
|
7 |
tools 1set |
|
|
8 |
foundation screws 1set |
|
Special Accessories
|
|
CW61125ECW61140ECW61160E |
CW61180ECW61190E |
|
1 |
Φ 1400mm Φ1600mm Φ1800mm Φ2000mm Heavy chuck |
|
|
2 |
steady rest Φ400--700mm |
steady rest Φ120--480mm |
|
3 |
|
follow rest Φ500--220mm |
