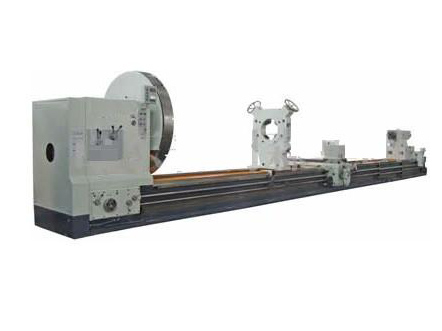

CW61125E
These lathes can perform to turn end-face ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top tool post can be operated individually by power for cutting shirt taper surface. It also can turn automatically long taper by the compound movement combined longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The have the characteristics of large power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
The machine consists of the bed of machine, headstock, feeding box, tailstock, carriage and tool post, apron, fixed device etc.
Main Specifications and Features
|
SPECIFICATION |
Model |
||||
|
CW61125E |
CW61140E |
CW61160E |
CW61180E |
CW61190E |
|
|
Max.swing diameter over bed |
1300mm |
1500mm |
1700mm |
1900mm |
2100mm |
|
Max.swing diameter over carriage |
900mm |
1100mm |
1300mm |
1500 |
1700mm |
|
Width of bed |
1100mm |
||||
|
Max.length of workpiece |
1000 -12000mm |
||||
|
The bed saddle longitudinal maximum sroke |
1000 -12000mm |
||||
|
The top two largest bearing |
18t |
||||
|
Spindle nose |
A15 |
||||
|
Sindle bore diameter |
100mm |
||||
|
Taper of spindle bore |
Metric No.140 |
||||
|
Range of spindle speed |
2-200 |
||||
|
Spindle front bearing inner diameter |
280mm |
||||
|
Longitudinal feeds range |
0.1-12r/min 56 kinds |
||||
|
Transversal feeds range |
0.05-6mm/r 56kinds |
||||
|
Metrec thread range |
1-120mm 44kinds |
||||
|
Inch thread range |
3/8-28TPI 31kinds |
||||
|
Module threads range |
0.5-60mm 45kinds |
||||
|
Pitch threads range |
1-56TPI 25kinds |
||||
|
Taper of Tailstock sleeve |
Metric No.80 |
||||
|
Traver of tailstock sleeve |
300mm |
||||
|
Diameter of tailstock sleeve |
260mm |
||||
|
Main motor power |
DC55kW |
||||
|
Rapid motor power |
1.5kW |
||||
|
Coolant pump power |
0.125kW |
||||
