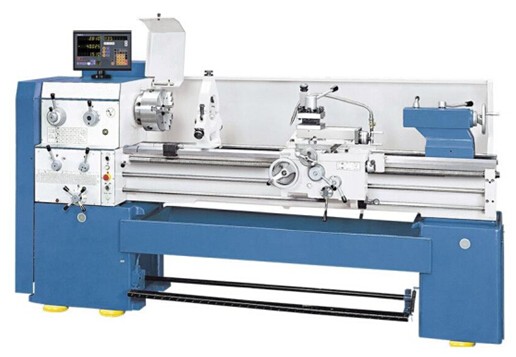

Large spindle bore of 65mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearings of Harbin brand
Outward appearance featuring large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened
All gears hardened and ground by Reishauer grinding machine
Leadscrew and feed rod interlocked, both with overload protection
Automatic feed stopper
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Large plane type; Halogen lamp; Quick change tool past; DRO; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication system.
|
MODEL |
CD6136B |
CD6140B |
CD6145B |
CD6150B |
CD6160B |
||
|
CAPACITIES |
Max. swing over bed (mm) |
360 |
400 |
450 |
500 |
600 |
|
|
Max. swing over cross slide(mm) |
185 |
225 |
285 |
325mm |
360 |
||
|
Center distance (mm) |
1000, 1500, 2000mm |
||||||
|
Max swing in gap (mm) |
490 |
530 |
580 |
630 |
730 |
||
|
Valid length of gap |
260mm |
||||||
|
Bed width |
330mm |
||||||
|
HEADSTOCK |
Spindle hole |
65mm |
|||||
|
Spindle nose |
ISO-C6 or ISO-D6 |
||||||
|
Spindle taper |
Metric 70mm |
||||||
|
Spindle speeds (Number) |
22-1800rpm (15 steps) |
||||||
|
FEEDS |
Metric threads range (Kinds) |
0.5-28mm (66kinds) |
|||||
|
Inch Threads range (Kinds) |
1-56 /inch(66kinds) |
||||||
|
Module threads range (Kinds) |
0.5-3.5mm (33kinds) |
||||||
|
Diametral threads range (Kinds) |
8-56 DP(33kinds) |
||||||
|
Longitudinal fees range (Kinds) |
0.072-4.038mm/rev(0.0027-0.15 inch/rev) (66kinds) |
||||||
|
Cross feeds range (Kinds) |
0.036-2.019mm/rev(0.0013-0.075 inch/rev) (66kinds) |
||||||
|
Rapid traveling speed of carriage |
5m/min (16.4ft/min) |
||||||
|
Leadscrew size: Diameter/Pitch |
35mm/6mm |
||||||
|
CARRIAGE |
Cross slide travel |
300mm |
|||||
|
Compound rest travel |
130mm |
||||||
|
Cross-section size of toolshank |
20*20mm |
25*20mm |
25*25mm |
||||
|
TAILSTOCK |
Taper of tailstock sleeve |
Morse No.5 |
|||||
|
Diameter of tailstock sleeve |
65mm |
||||||
|
Travel of tailstock sleeve |
120mm |
||||||
|
MOTOR |
Main drive motor |
4.0kw or 5.5kw or 7.5kw |
7.5kw |
||||
|
Coolant pump motor |
0.125kw |
||||||
|
Rapid traverse motor |
0.12kw |
||||||
|
Packing Size (L*W*H) (mm) |
|||||||
|
Center Distance 1000mm |
2420*1150*1800 |
||||||
|
1500mm |
2920*1150*1800 |
||||||
|
2000mm |
3460*1150*1800 |
||||||
|
Standard accessories |
Optional accessories |
|
3-jaw chuck |
Live center |
|
Center$center sleever |
Quick change tool post |
|
Wrenched |
Taper copy ruler |
|
Oil gun |
4-position longitudinal touch stop |
|
Operation manual |
|
|
Steady rest |
|
|
follow rest |
|
|
4-jaw chuck |
|
|
Face plate |
|
|
Thread dial |
|
|
Longitudinal touch stop |
|
