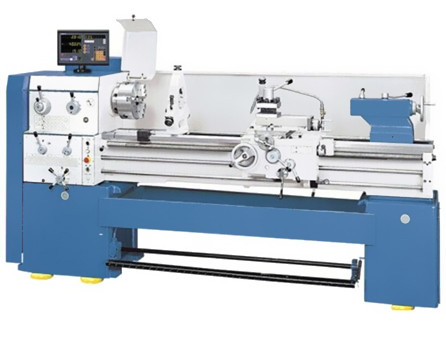

Over sized spindle bore of 80mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand.
Outward appearance of machine features large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened (HB450 plus).
All gears hardened and ground by Reishauer grinding machine.
Leadscrew and feed-rod interlocked, both with overload protection.
Automatic feed stopper.
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Halogen lamp; Quick change; Tool post; DRP; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake;
Forced lubrication system.
|
Model |
CD6140C |
CD6145C |
CD6150C |
CD6160C |
||||
|
CAPACTIES |
Max. swing over bed mm |
400 |
450 |
500 |
600 |
|||
|
Max. swing over cross slide mm |
225 |
285 |
325 |
360 |
||||
|
Max. swing in gap mm |
530 |
580 |
630 |
730 |
||||
|
Center distance |
1000,1500, 2000mm |
|||||||
|
Cross slide travel mm |
330mm |
|||||||
|
SPINDLE |
Spindle hole |
80mm |
||||||
|
Spindle nose |
ISO-C8 or ISO-D8 |
|||||||
|
Spindle taper |
Metric 85mm |
|||||||
|
Spindle speeds |
24-1600rpm (15 Steps) |
|||||||
|
FEEDS |
Metric threads range (Kinds) |
0.5-28mm (66Kinds) |
||||||
|
Inch threads range (Kinds) |
1-56tpi (66 Kinds) |
|||||||
|
Module threads range (Kinds) |
0.5-3.5mm (33 Kinds) |
|||||||
|
Diametral threads range (Kinds) |
8-56 DP (33 Kinds) |
|||||||
|
Longitudinal feeds range(kinds) |
0.072-4.038mm/reV(0.0027-0.15inch/rev)(66kinds) |
|||||||
|
Cross feeds range (kinds) |
0.036-2.019mm/reV(0.0013-0.075nch/rev)(66kinds) |
|||||||
|
Rapid traveling speed of carriage |
5m/min(16.4ft/min) |
|||||||
|
Leadscrew size:Diameter pitch |
35mm/6mm or 35mm |
|||||||
|
CARRIAGE |
Cross slide travel |
300mm |
||||||
|
Compound rest travel |
130mm |
|||||||
|
Cross-section size of tool shank |
25x25mm |
|||||||
|
TAILSTOCK |
Spindle diameter |
65mm |
||||||
|
Spindle taper |
Morse No. 5 |
|||||||
|
Spindle travel |
120mm |
|||||||
|
Main motor |
Main drive motor |
4.0kw or 5.5kw |
7.5kw |
|||||
|
Coolant pump motor |
0.125kw |
|||||||
|
Rapid traverse motor |
0.12kw |
|||||||
|
Net weight /Gross weight(kg) |
1000mm |
1640/2290 |
1680/2330 |
1700/2350 |
1800/2500 |
|||
|
1500mm |
1850/2250 |
1890/2590 |
1910/2610 |
2010/2760 |
||||
|
2000mm |
2090/2860 |
2130/2880 |
2150/2920 |
2250/3070 |
||||
|
PACKING SIZE |
1000mm |
2420*1150*1800mm |
||||||
|
1500mm |
2920*1150*1800mm |
|||||||
|
2000mm |
3460*1150*1800mm |
|||||||
|
Standard accessories |
Optional accessories |
|
3-jaw chuck |
Live center |
|
Center$center sleever |
Quick change tool post |
|
Wrenched |
Taper copy ruler |
|
Oil gun |
4-position longitudinal touch stop |
|
Operation manual |
|
|
Steady rest |
|
|
follow rest |
|
|
4-jaw chuck |
|
|
Face plate |
|
|
Thread dial |
|
|
Longitudinal touch stop |
|
