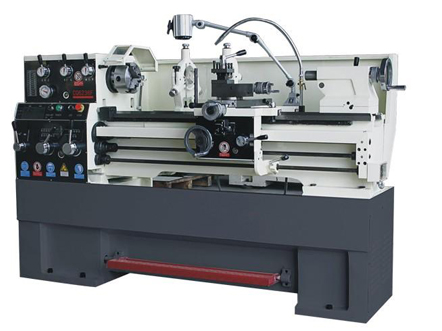

Model

CQ6236L

CQ6236F

General
Capacity

Max.Swing.over bed

mm

φ356mm（14〞）

φ356mm（14〞）

Max.Swing.over cross slide

mm

φ210（8-2/8〞）

φ210（8-2/8〞）

Max.Swing.over gap

mm

φ506（20〞）

φ506（20〞）

Bed width

mm

260(10〞)

260(10〞)

Distance between centers

mm

1000(40〞)

1000(40〞)

Spindle

Taper of spindle bore

MT#5

MT#5

spindle bore

mm

φ40（1-1/2〞）

φ40（1-1/2〞）

Steps of spindle speeds

12steps

12steps

Range of spindle speeds

r/min

40-1800rpm

40-1800rpm

Spindle nose

D-4

D-4

Threading
&
Feeding

Metric thread range

mm

0.25~10

0.45~7.5(22kinds)

Inch screw thread range

TPI

3 1/2~160

4~112(40kinds)

Range of longitudinal feeds

mm

0.015-0.72(0.0072-0.00364〞in/rev)

0.03-0.688(0.0011-0.0271〞in/rev)

Range of cross feeds

mm

0.010-0.368(0.0005〞-0.784〞in/rev)

0.015-0.220(0.0003〞-0.01〞in/rev)

Tailstock

Travel of tailstock quill

mm

120(4-3/4〞)

120(4-3/4〞)

Diameter of tailstock quill

mm

Φ45(1-25/32〞)

Φ45(1-25/32〞)

Taper of tailstock quill

MT#3

MT#3

Power

Main motor power

Kw

2.4(3HP)

2.4(3HP)

Coolant pump motor power

Kw

0.04(0.055HP)

0.04(0.055HP)

Overall dimensions of lathe(LxWxH)

mm

1900x740x1150

1900x740x1150

Packing size of lathe(LxWxH)

mm

1970x760x1460

1970x760x1460

Net Weight

Kg

1050（2310ibs）

1050（2310ibs）

Gross Weight

Kg

1150 (2530ibs)

1150 (2530ibs)
