Model

C6240BCX1000

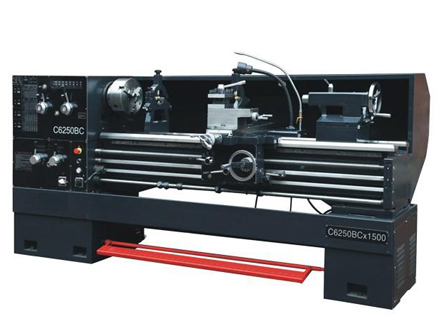

C6250BCX1500

C6260BCX2200

C6266BDX2200

General
Capacity

Max.Swing.over bed

mm

Φ400

Φ500

Φ600

Φ660

Max.Swing.over cross slide

mm

Φ230

Φ330

Φ420

Φ420

Max.Swing.over gap

mm

Φ620

Φ720

Φ880

Φ880

Length of Gap

mm

280

Distance between centers

mm

1000

1500

2200

2200

Spindle

Taper of spindle bore

MT6

MT6

spindle bore

mm

Φ52

Φ80

Steps of spindle speeds

16steps

16steps

Range of spindle speeds

r/min

18-1800rpm

16-1600rpm

Spindle nose

D1-6

D1-6

Threading
&
Feeding

Metric thread range

mm

0.1-144(41 kinds)

Inch screw thread range

TPI

2-112(60 kinds)

Range of longitudinal feeds

mm

0.0325-1.76

Range of cross feeds

mm

0.014-0.736

Diametric pitch threads

Dp

4-112(50 kinds)

Module threads

mm

0.1-7(34 kinds)

Tailstock

Travel of tailstock quill

mm

120

Diameter of tailstock quill

mm

Φ55

Taper of tailstock quill

MT4

Power

Main motor power

Kw

4/5.5

Overall dimensions of lathe(LxWxH)

mm

2400x1230x1560

2900x120x1610

3600x1345x1675

3600x1345x1675

Net Weight / Gross weight

Kg

1600/1800

1800/2000

2500/2700

2600/2800
