Features
Bed is made of high tensile cast iron by resin-sand
Foundary

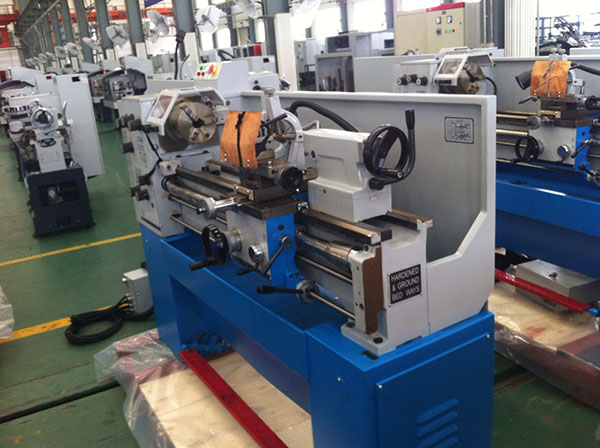

Bedways are hardened and ground.
9 steps and 18 steps spindle speeds are available.
2.2KW/1.5KW motor give more power suited heavy duty cutting.
Steel or cast iron stand for your choice.
Foot and electromagnetic brake are available.
Protectin systems to meet CE Standards.
Interlock to prevent simultaneous feed of leadsrew and feedshaft.

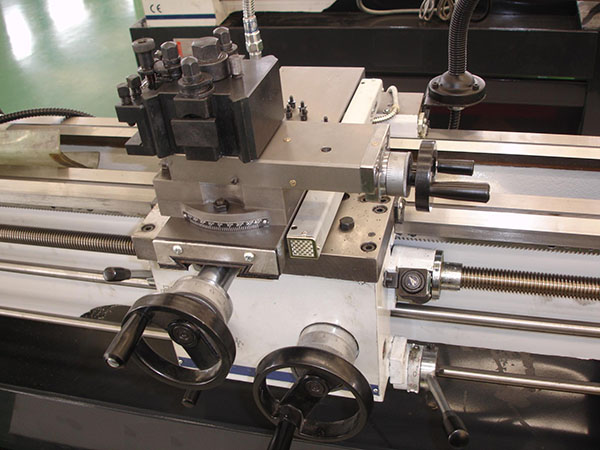

All guides are adjustable through taper gibs.
Oil-bath lubricated apron gear box.
Shift gear system to change feed direction.
|
MODEL |
LC340A |

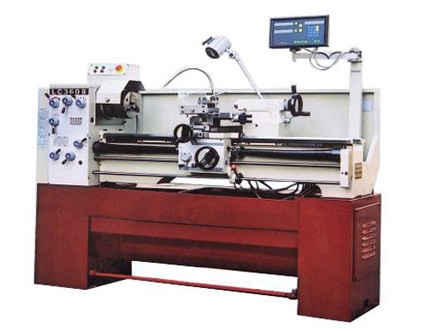

LC360B |
|
|
Max.swing over bed |
340mm(133/8″) |
360mm(14″) |
|
|
Max.swing over cross slide |
210mm(8″) |
230mm(84/5″) |
|
|
Max.swing over gap |
470mm(181/2″) |
510mm(20″) |
|
|
Distance between centers |
750mm(30″) 1000mm(40″) |
1000mm(40″) |
|
|
Width of bed |
186mm(71/3″) |
220mm(4/5″) |
|
|
Spindle nose |
D5 OR D1-5(CAMLOCK) |
D5 OR D1-5(CAMLOCK) |
|
|
Spindle bore |
38mm(11/2″) |
38mm(11/2″) |
|
|
Spindle speeds(number) |
60Hz |
60~2000 r.p.m.(9 STEPS or 18 STEPS) |
60~2000 r.p.m.(9 STEPS or 18 STEPS) |
|
50Hz |
60~2000r.p.m.(9 STEPS) 50~1720 r.p.m.(18 STEPS) |
60~2000r.p.m.(9 STEPS) 50~1720 r.p.m.(18 STEPS) |
|
|
Metric threads |
0.25~9mm (20 KINDS) |
0.25~9mm (20 KINDS) |
|
|
Inch threads |
72~4(3/4) T.P.I. (33 KINDS) |
72~4(3/4) T.P.I. (33 KINDS) |
|
|
Module threads |
0.25~3.5mm (12 KINDS) |
0.25~3.5mm (12 KINDS) |
|
|
Diametric pitch threads |
8~144 D.P. (30 KINDS) |
8~144 D.P. (30 KINDS) |
|
|
Longitudinal feeds range |
0.03~0.42mm(0.0012~0.0175in) |
0.03~0.42mm(0.0012~0.0175in) |
|
|
Cross feeds range |
0.015~0.21mm(0.0006~0.0088in) |
0.015~0.21mm(0.0006~0.0088in) |
|
|
Main motor power |
1.5KW |
2.2KW |
|
|
Net/gross weight (kgs) |
570/670/750 |
600/700 |
|
