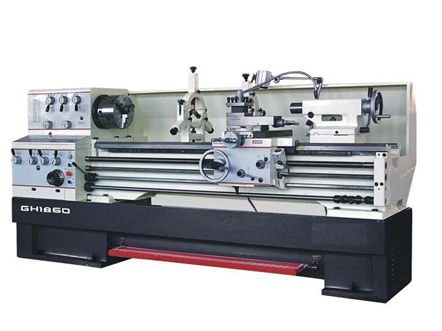

Model

GH-1840

GH-1860

GH-2060

capacity

Max.Swing.over bed

mm

Φ450（18〞）

Φ500（20〞）

Max.Swing.over cross slide

mm

Φ285（11.2〞）

Φ330（13〞）

Max.Swing.over gap

mm

Φ696（27.4〞）

Φ746（29.4〞）

Distance between centers

mm

1000(40〞)

1500（60〞）

Bed width

mm

340

Spindle

Taper of spindle bore

MT#6

spindle bore

mm

Φ80（3-1/8〞）

Steps of spindle speeds

12steps

Range of spindle speeds

r/min

40-1600rpm

Spindle nose

D-8

Threading
&
Feeding

Metric thread range

mm

0.1-144(41kinds)

Inch screw thread range

TPI

2~112(60kinds)

Diametric pitch threads

DP

4~112(50kinds)

Module threads

MP

0.1~7(34kinds)

Range of longitudinal feeds

mm

0.0325-1.76(0.0012-0.0672〞in/rev)

Range of cross feeds

mm

0.014-0.736(0.0005〞-0.0288〞in/rev)

Max.cross slide travel

mm

220(9〞)

Max.compiund slide travel

mm

120（4-3/4〞）

Tailstock

Travel of tailstock quill

mm

130(5〞)

Diameter of tailstock quill

mm

Φ70（2-3/4）

Taper of tailstock quill

MT#4

Power

Main motor power

Kw

5.5(7-1/2HP)

Overall dimensions of lathe(LxWxH)

mm

1970x800 x1460

1970x800 x1460

1970x800 x1460

Net Weight

Kg

2400

2600

3000

Gross Weight

Kg

2600

2800

3200
