Designed for continuous operation at maximum speed,
very quiet operation, maximum accuracy and minimal
heat accumulation ensure optimum machining results
Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing, and spark-out strokes hydraulic
longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table,
V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground,
and PTFE (polytetrafuorethylene) counterlaminated- ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication

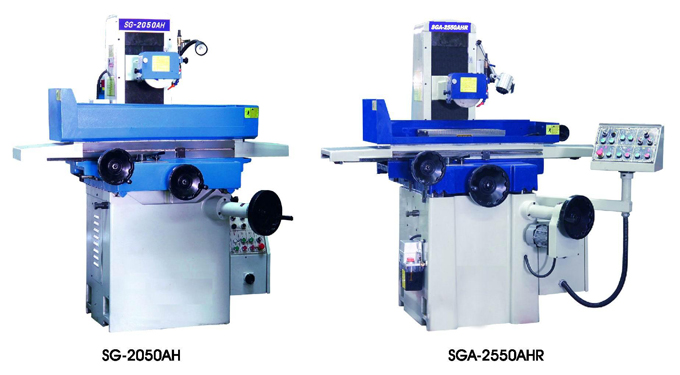

| MODEL | Unit | SG2050H/AH SG2050AHR SG2050AHD | |
| Table size(W x L) | mm | 200x460 | |
| Max longitudinal travel | mm | 510 | |
| Max cross travel | mm | 238 | |
| Max distance from spindle center to table | mm | 450 | |
| Electro magnetic chuck size | mm | 200x460 | |
| Speed of table longitudinal movement | m/min | 7-23 | |
| Table transverse movement | Auto feed | mm/min | 0.1-8 |
| Rapid speed | mm/min | 990 | |
|
Feed of handwheel |
Mm/div | 0.02 | |
| Wheelhead vertical movement | Auto feed | mm |
(H/AH/AHR model)/0.005/0.01/0.02/ 0.03/0.04/0.05(Only for AHD model) |
| Rapid speed | Mm/min | (H/AH model) /460(for AHR model) | |
|
Feed of handwheel |
Mm/div | 0.005 | |
|
Grinding wheel |
Speed | rpm | 2850(50Hz) 3450(60Hz) |
| Size | mm | 200x20x31.75 | |
| Spindle motor | kw | 1.5 | |
| Hydraulic motor | kw | 0.75 | |
| Cooling pump motor | kw | 0.04 | |
| Elevating motor | kw |
(AH mode) 0.25(AHR mode) 0.5(AHD mode, servo motor) |
|
| Cross feed motor | kw | 0.04 | |
| Max loading capacity of table | Kg | 120 | |
| Total rated power | kw | 33 | |
| Height of machine | mm | 1675 | |
| Floor space(LxW) | mm | 2050x1400 | |
| Gross weight | kg | 1600 | |
| Package dimensions(L x W x H) | mm | 1900x1720x2175 | |
