maximum accuracy and minimal heat accumulation ensure optimum
machining results Grinding spindle runs in maintenance-free preloaded
precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing,
and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table,
V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground,
and PTFE(polytetrafuorethylene)counterlaminated-ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication
AH: Auto cross feed, hydraulic longitudinal feed, manual vertical feed
AHR: Auto cross feed, hydraulic longitudinal feed, rapid vertical feed
AHD: Auto cross feed, hydraulic longitudinal feed, automatic vertic feed

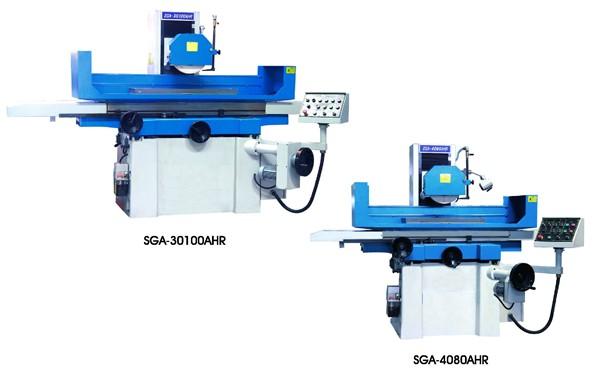

| MODEL | Unit | SGA2550AH | SGA3063AH | SGA30100AH | SGA4080AH | SGA40100AH | |
| MODEL | SGA2550AHR | SGA3063AHR | SGA30100AHR | SGA4080AHR | SGA40100AHR | ||
| MODEL | SGA2550AHD | SGA3063AHD | SGA30100AHD | SGA4080AHD | SGA40100AHD | ||
| Table size(W x L) | mm | 250x500 | 305x635 | 305x1020 | 406x813 | 406x1020 | |
| Max longitudinal travel | mm | 560 | 765 | 1130 | 910 | 1130 | |
| Max cross travel | mm | 275 | 340 | 340 | 450 | 450 | |
| Max distance from spindle center to table | mm | 450 | 580 | 580 | 580 | 580 | |
| Electro magnetic chuck size | mm | 250x500 | 300x600 | 300x1000 | 400x800 | 400x1000 | |
| Speed of table longitudinal movement | m/min | 7-23 | |||||
| Table transverse movement |
Auto feed |
mm/min | 0.1-8 | ||||
|
Rapid speed |
mm/min | 990 | |||||
|
Feed of handwheel |
Mm/div | 0.02 | |||||
| Wheelhead vertical movement | Auto feed | mm | (H/AH/AHR model)/0.005/0.01/0.02/0.03/0.04/0.05(Only for AHD model) | ||||
| Rapid speed | Mm/min |
(H/AH model) model)/460(for AHR |
(H/AH model) /460( Only for AHR/AHD model) | ||||
|
Feed of handwheel |
Mm/div | 0.005 | |||||
|
Grinding wheel |
Speed | rpm | 2850(50Hz) 3450(60Hz) | 1450(50Hz) 1750(60Hz) | |||
| Size | mm | 200x20x31.75 | 350x40x127 | ||||
| Spindle motor | kw | 2.2 | 5.5 | ||||
| Hydraulic motor | kw | 0.75 | 2.2 | ||||
| Cooling pump motor | kw | 0.04 | 0.125 | ||||
| Elevating motor | kw | (AH mode) 0.25(AHR mode) 0.5(AHD mode, servo motor) | |||||
| Cross feed motor | kw | 0.04 | |||||
| Max loading capacity of table | Kg | 180 | 270 | 400 | 500 | 600 | |
| Total rated power | kw | 3.7 | 9 | ||||
| Height of machine | mm | 1675 | 1890 | ||||
| Floor space(LxW) | mm | 2300x1600 | 2900x2200 | 4400x2200 | 3600x2400 | 4400x2400 | |
| Gross weight | kg | 1800 | 2900 | 3300 | 3500 | 4000 | |
| Package dimensions(L x W x H) | mm | 2000x2100x2175 | 2350x2220x2150 | 2950x2220x2210 | 2850x2270x2180 | 2950x2270x2210 | |
