Model

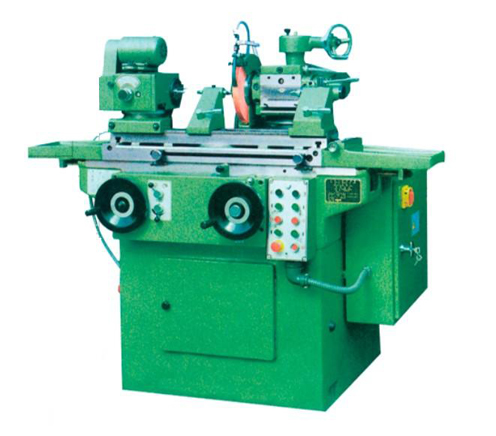

2M9120A

Max. swing diameter over table

Φ200mm

Max. work piece length

500mm

Size for surface Grinding

300×125mm

Size for cutter grinding

Φ200×500mm

Max. weight of Work piece

10kg

Work head spindle speeds

110.200.300rpm

Work head swivel

±90º

Max. traverse of the wheel head

Slide Vertical/Cross

200/200mm

Wheel head spindle speeds

2500rpm

Speed of wheel head up-down travel

Internal grinding spindle speed

13500rpm

Longitudinal table travel, hand control

480mm

Table travelse speed

<7m/min

Max. swivel of table

±45º_-30º

Total power

2.905kw

Overall dimensions

1520×1133×1173mm

Size of case

1900×1400×1630mm

Gross Weight/Net weight

1700/1285kg

Circularity

External

0.0015mm

Internal

0.0025mm

Circularity

Ra0.32m

Surface roughness

Ra0.63µm

Standard Equipment

Coolant equipment

1Set-Lefttailstock

6Piece-Grinding wheel

5Set-Driving dogs

1Set-Internal grinding wheel head

1Set-Wheel dresser

1Piece-Extended grinding wheel spindle

without diamond

1Set-Cutter head

3Piece-Wheel pullers

1Set-Ttree-jaw chuck

2 Piece-Vee-belt

1Set-Plane grinding

1Set-Wheelbalancing stand

1 Piece-Centre

1Piece-Flat belts

1Set-Tooth rest

3Sets-Flangesfor grinding wheel

1 Piece-Centre

2Piece-Centering technical sleeves

2Sets-Wheel guards
