| MODEL | Unit | M1350 | M1350A/B | |
| Distance between centers | mm | 1500、2000、3000、4000 | 3000、4000 | |
| Center height | mm | 270 | 270 | |
| Dia Ground(O.D) | mm | 25-500 | 25-500 | |
| Max length ground(O.D) | mm | 1500、2000、3000、4000 | 3000、4000 | |
| Max weight work piece | Kg | 1000 | 2000 | |
| Center taper(M50 | Mt | 6 | 6 | |
| Spindle speed | r/min | 50Hz：18-180 steplesss | 50Hz：10-100 steplesss | |
| Wheel spindle speed | r/min | 870 | 870 | |
| Wheel head rapid travel | Mm | 100 | 100 | |
| Max travel | Mm | 438 | 438 | |
| Hand feed per rev | Rough:4 | Rough:4 | ||
| fine:0.5 | fine:0.5 | |||
| Hand feed per gra | Rough:0.02 | Rough:0.02 | ||
| Fine:0.0025 | Fine:0.0025 | |||
| Wheel size | Mm | 750x75x305 | 750x75x305 | |
| Peripheral velocity | m/s | 35 | 35 | |
| Hand feed per rev | Mm | 5 | 5 | |
|
Max swiveling angle of able |
Clockwise | 3°(1500)2°（2000、3000）1°（4000） | 2°（2000、3000）、1°（4000） | |
| Anticlockwise | 6°（1500）5°（2000）3°（3000）2°（4000） | 3°（3000）、2°（4000） | ||
| Longitudinal speed range of table | m/min | 0.1-3 | 0.1-3 | |
| Center tape(mt) | Mt | 6 | 6 | |
| Quill travel | mm | 70 | 70 | |
| Wheel head motor power | Kw | 15 | 15 | |
| Work head motor power | Kw | 4 | 7.5 | |
| Gross weight | T | 11.2（1500）、13（2000） | 17.4（3000）20（4000） | |
| 17.4（3000）20（4000） | ||||
| Packing dimension | cm | 510x228x210(1500) | 785x228x210(3000) | |
| 585x228x210(2000) | ||||
| 785x228x210(3000) | 1000x228x210(4000) | |||
| 1000x228x210(4000) | ||||
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002

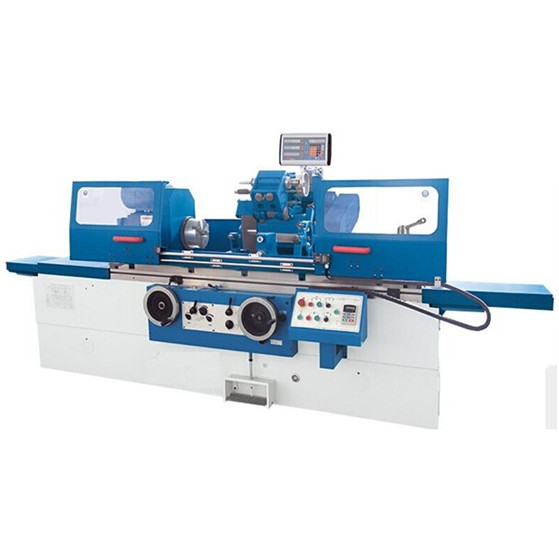

Cylindrical grinderThe current position: HOME > PRODUCTS > GRINDER > Cylindrical grinder
