| MODEL | X6323A | X6323B | |
| Table size |
230*1067 230*1246 |
230*1067 230*1246 |
|
| Long travel（mm） | 650 | 840 | |
| Cross travel(mm) | 305 | 420 | |
| Vertical travel(mm) | 400 | 420 | |
| T-slot No.and size(mm) | 3*16 | ||
| Ram travel(mm) | 312 | 470 | |
|
Distance from spindle nose to table surface(mm) |
15-415 | 15-415 | |
| Spindle hole taper |
Standard:R8 Optional：ISO30/ISO40 |
Standard:R8 Optional：ISO30/ISO40 |
|
| Spindle travel(mm) | 127 | ||
| Spindle speed(r.p.m) | standard: shift grade 16: 50HZ65-4500,60HZ80-5440 | ||
| optional：variable：65-4500 | optional：variable：65-4500 | ||
| Auto.quill feed | Three steps：0.04/0.08/0.15mm/revolution | ||
| Spindle motor | 2.25kw/3hp | 2.25kw/3hp | |
| Head swivel | 90° | ||
| Head tilting | 45° | ||
| Dimension of package | One miller per case | 1400*1476*2030 | 1400*1476*2030 |
| Two miller per case | 1450*1570*2080 | 1450*1570*2080 | |
| Three miller per case | 1450*2180*2080 | 1450*2180*2080 | |
| G.W/set | 1100 | 1160 | |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Turret milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Turret milling machine

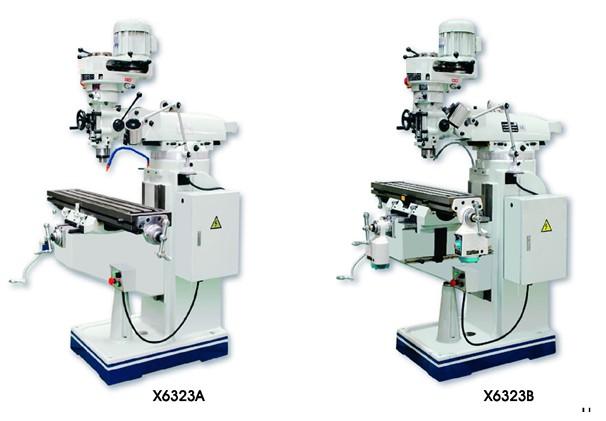

X6323 Turret mill machine
