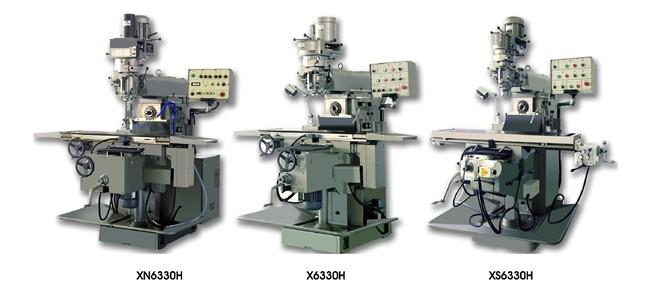

XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine has reasonable construction and
superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions
available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline.
Features of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine
XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine has super width of bed and knee
box guide way, which have been hardened and precision ground, with high rigidity and stability. The guide way of
the saddle is lined with TF wearable belt. The machine with one vertical spindle and one horizontal spindle,
the spindles and gears have been hardened and ground,suitable heavy cutting.
Technical Specifications of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine
| Model | Unit | XN6330H | X6330H | XS6330H | |||||
| Table | mm | 300x1300 | 300x1300 | 300x1500 | 300x1370 | 300x1500 | |||
| Table longitudinal travel | mm | 845 | 845 | 1000 | 880 | 1000 | |||
| Table cross travel | mm | 385 | 380 | ||||||
| Knee vertical travel | mm | 435 | |||||||
| Table longitudinal feed rate | mm/min |
0-3500 Servo motor |
------------ | ||||||
| Table cross feed rate | mm/min | ------------ | |||||||
| Knee rapid speed | mm/min | 900 | |||||||
| Vertical spindle | Motor power | hp | 5hp |
Standard: 3hp; optional: 5hp |
|||||
| Speed | rpm |
Standard/16 steps: 50HZ:65-4500 / 60HZ:80-5440 Optional: variable speed 65-3750 |
|||||||
| Taper | ISO40 |
Standard: R8; Optional: ISO40 |
|||||||
| Quill travel | mm | 127 | |||||||
| Quill feed | mm/rev | 0.04/0.08/0.15 | |||||||
| Head rotating | R/L: 90° | R/L: 90°; B/F: 45° | |||||||
|
Distance from spindle end to table surface |
mm | 115-545 | |||||||
| Horizontal spindle | Motor power | hp | 5hp | ||||||
| Speed | rpm | 50Hz: 45/80/165/260/500/980; 60Hz: 55/100/200/315/600/1180 | |||||||
| Taper | ISO40 | ||||||||
|
Distance from spindle end to table surface |
mm | -20-410 | |||||||
| Distance from spindle end to ram | mm | 183 | |||||||
| Ram travel | mm | 480 | |||||||
| Ram rotating | 360° | ||||||||
| Net weigh | kg | 1900 | 1900 | 1950 | 1680 | 1730 | |||
| Package size (L x W x H) | cm | 180x150x220 | 180x180x220 | 180x160x220 | 180x180x220 | ||||
Standard accessories of XN6330H X6330H XS6330H Universal Vertical & Horizontal Milling Machine
Draw bar, Tool box & tools, Working lamp, Electrical cabinet and hang up control panel, Automatic.
Lubication pump, Coolant system, Oil tray, plastic splashing guard.
Optional accessories of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine
| X-axis APF500 power feed | 6 inch machine vise |
| X-axis APF750 power feed | 52PCS clamping kits |
| Y-axis APF500 power feed | 8PCS R8 collets |
| Y-axis APF750 power feed | 15PCS R8 collets |
| Z-axis APF750 power feed | 8PCS R8/NT30/NT40 collets |
| X-axis Gear box feeder | 15PCS R8/NT30/NT40 collets |
| Y-axis Gear box feeder | Air-power draw bar |
| Variable speed milling head- | Spindle guard |
| X/Y-axis SINO | Table guard |
| X/Y/Z-axis SINO | Ball screw for X6330/6333 |
