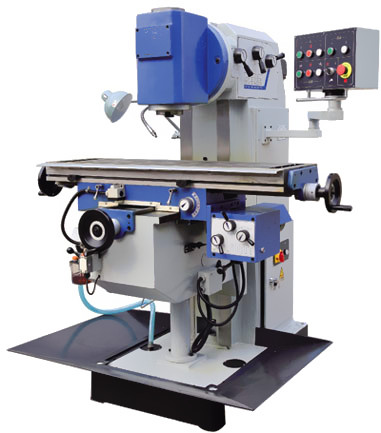

Its spindle taper hole can be installed directly or by attachment with variety of
cylindrical knife, molding knife, end miller, angle miller and other cutting tools.
It is applied for process the plane, bevel,
groove, hole of various parts. It is the ideal equipment in many professions,
such as Machinery, Molds, Instruments, Meters, Automobiles, Motorcycles, etc.
Characteristics:
A. Spindle sleeve can be manually micro-feeding, and set limit device, milling head
can be adjusting rotation 45 ° Counter-clockwise.
B. Table can be manual feeding vertically or horizontally, and the table can
lift vertically. At the same time, vertical and horizontal mobility can also
achieve fast-forward, mobile to mobile feeding and vertical movements;
C. Adopt 1200mm extended slider, and 1500mm length work-table, the longitudinal travel of table up to 1000mm, has strong stability.
D. The main transmission and feeding are used gear speed change mechanism;
It has 12 classes different speed,
so the range of speed adjustment is widely.
E. Spindle bearing with tapered roller bearings, bearing capability, and using dynamic
braking, with a big braking
torque, stop quickly, braking reliable.
F. Good stability with rectangular guide.
G. After super audio quenching, the table and guide have stronger intensity.
| ITEM | UNIT | XL5036B |
| Spindle Taper | 7:24 ISO50 | |
| Distance from spindle end to work-table | mm | 70-450 |
| Distance from spindle to vertical guide surface | mm | 360 |
| Range of spindle speed | r/min | 60-1690(12class) |
| Rotation angle of vertical milling head | ±45° | |
| Table size | mm | 1500×360 |
| Table stroke(longitudinal /Horizontal/Vertical) | mm | 1000/320/380 |
| Table longitudinal / Horizontal feed speed | mm/min |
15-370(8class) 540(fast) |
| Table vertical lifting speed | mm/min | 590 |
| Table T-slot number / width / distance | mm | 3/18/80 |
| Power of main driving motor | kW | 4 |
| Power of table feeding motor | W | 750 |
| Power of table lifting feed motor | W | 1100 |
| Power of cooling pump motor | W | 90 |
| Cooling pump flow | L/Min | 25 |
| Net/Gross Weight | kg | 2230/2400 |
| Overall Dimension | mm | 2380×1790×2100 |
