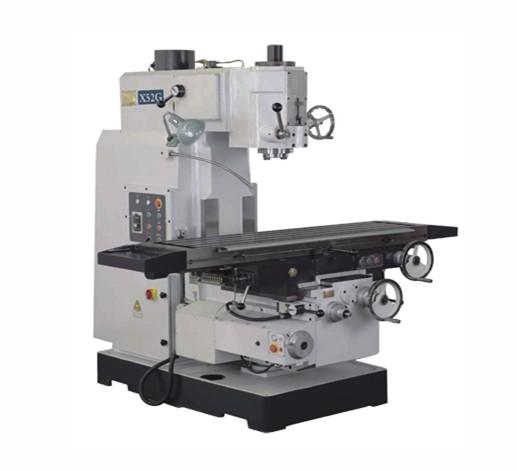

●X,Y,Z axes guideways are hardened and precision ground .Y,Z axes are extra-wide rectangle guideways.
●X,Y,Z axes can be manual feed and covergent power feed.
●Spindle sleeve micro-feed:70mm.
Main Accessories
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|
Mill chuck&collets(ISO50/4,5,6, 8,10,12,14,16) |
Digital readout system(DRO) |
| Middle sleeve(ISO50/MS4) | Machine vice(200mm) |
| Lnner-hexagon spanners | 58pcs/set clamping kits(M16) |
| Dead head spanners | Horizontal/vertical rotary table(TSL320) |
| Draw bar | Universal dividing head(F11 125A) |
| Cooling system | Middle sleeve(MS4/MS3,MS4/MS2) |
| Lubricate system | Reduction sleeve(ISO50/MS4,MS4/MS3,MS4/MS2) |
| Work lamp |
| Specification | Unit | Technical parameters | |||
| Spindle taper | 7:24 ISO50 | ||||
| Distance from spindle nose To worktable | mm | 60-480 | |||
|
Distance from spindle center center line to column surface |
mm | 360 | |||
| Spindle speed | rpm | Variable,2grades,50-200,200-1500 | |||
| Worktable size | mm | 1600×360 | |||
| Worktable travel | Longitudinal | Manual | mm | 1020 | |
| Power | mm | 1000 | |||
| Cross | mm | 320 | |||
| Vertical | mm | 420 | |||
| Worktable longitudinal/cross power feed | mm/min |
12steps 24-800mm/min Rapid:1800mm/min |
|||
| Worktable elevating power feed | mm/min |
12steps 6-200mm/min Rapid:450mm/min |
|||
| Worktable “T”slot | Number | 5 | |||
| Width | mm | 18 | |||
| Distance | mm | 70 | |||
| Worktable load | kg | 350 | |||
| Main motor | kw | 7.5 | |||
| Worktable power feed motor | kw | 1.5 | |||
| Coolant pump | kw | 0.09 | |||
| Coolant flow | L/min | 25 | |||
| Overall dimension(L×W×H) | mm | 2080×2020×2140 | |||
| Net weight | kg | 3000 | |||
