STANDARD ACCESSORIES
| MILL CHUCK |
| VICE |
| WRENCH |
| INNER-HEXAGONAL SPANNER |
| VERTICAL DRAW BAR |
| MIDDLE-SLEEVE |

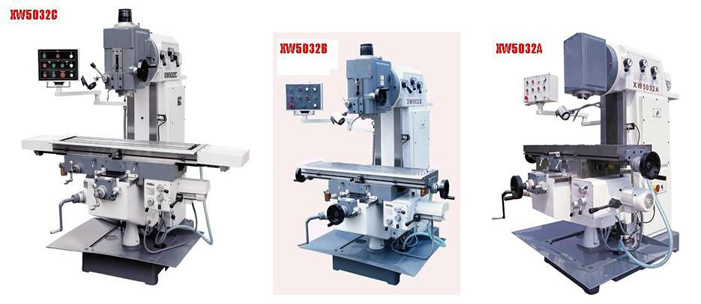

| SPECIFICATION | UNIT | XW5032A | XW5032B | XW5032C |
| TABLE SIZE | MM | 1320×320 | 1320×320 | 1320×320 |
| SPINDLE TAPER | ISO50 | ISO50 | ISO50 | |
| SPINDLE SPEEDRANGE | R/MIN | 58-1710 | 58-1710 | 58-1710 |
| TABLE TRAVEL | MM | 800(750)×300 | 800(750)×300 | 1000×300(MANUAL) |
| NO./WID./DIS. OF T-SLOT | 5-14-63 | 5-14-63 | 5-14-63 | |
|
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE |
MM | 45-445 | 35-435 | 35-435 |
|
DISTANCE FROM SPINDLE AXIS TO VERTICAL GUIDEWAY |
MM | 320 | 360 | 360 |
| SPINDLE MOTOR POWER | KW | 4 | 4 | 4 |
| OVERALL DIMENSION(L×W×H) | MM | 1770×1820×1880 | 1770×1820×1880 | 2020×1820×1880 |
| NET WEIGHT | KG | 2300 | 2300 | 2300 |
