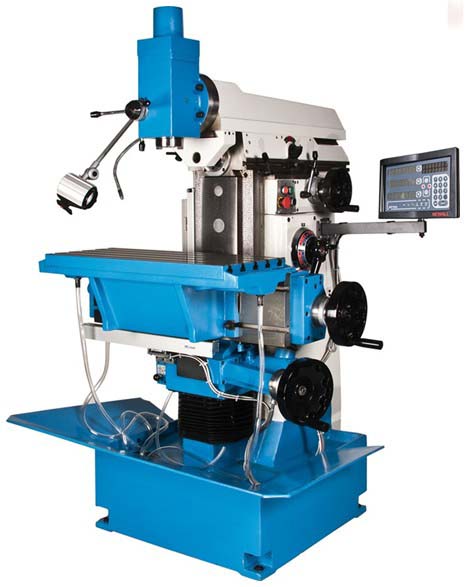

Inclined surfaces and slots on metal parts and is suitable for machining tolls ,jigs fixtures and
moulds as well as machine parts of complicated shapes in instruments and meters
manufacturing plants and machinery building works.
With the employment of attachment, such as diving head of rotary table, etc. the machine
can also be used for cutting gear .curved plants .cams and other complicate-shaped machine parts .when equipped with digital display system is may be further for
boring coordinated holes.
| Model | UM-300A | UM-400A | |
| Working surface of table | Horizontal | 320x750mm | 400x750mm |
| Vertical | 225x830mm | 250x1060mm | |
|
T-slots of table (Number x Width x Distance) Max travel of X,Y,Z |
Horizontal | 5x14x63mm | 6x14x63mm |
| Vertical | 2x14x126mm | 3x14x63mm | |
| 400,200,390,, | 500,400,400mm | ||
|
Distance between horizontal spindle and horizontal table |
Min | 35±63mm | 95±63mm |
| Max | 425±63mm | 475±63mm | |
|
Distance between vertical spindle and horizontal table |
Min | 65±63mm | 55±63mm |
| Max | 455±63mm | ||
|
Distance between vertical spindle and guideway |
660mm | 540mm | |
| Range of spindle speed(r/min) | 40-1600(18steps) | 40-2000(18steps) | |
| Spindle taper bore | ISO40 7:24 | ||
| Range of longitudinal(X),cross(Y).vertical(Z) | 8-310mm/min | 10-380mm/min | |
| Rapid feed of X,Y,Z | 1000mm/min | 1200mm/min | |
| Travel of vertical spindle quill | 80mm | ||
| Main motor power(total motor power)(kw) | 2.2(2.875) | 3(5) | |
| N.W/G.W(kg) | 1200/1600 | 1400/1800 | |
