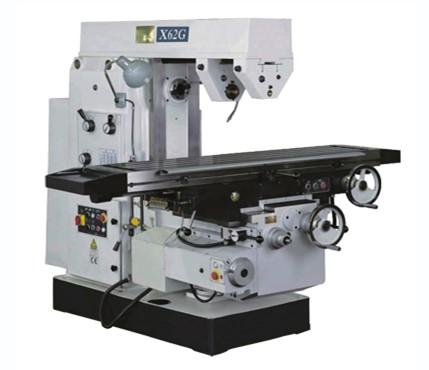

●X,Y,Z axes guideways are hardened and precision ground. Y,Z axes are extra-wide rectangle guideways.
●X,Y,Z axes can be manual feed and covergent power feed.
Main Accessories
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Middle sleeve(ISO50/MS4) | Digital readout system(DRO) |
| Lnner-hexagon spanners | Machine vice(200mm) |
| Dead head spanners | 58pcs/set clamping kits(M16) |
| Mill arbor(27mm,40mm) | Horizontal/vertical rotary table(TSL320) |
| Draw bar | Universal dividing head(F11 125A) |
| Cooling system | Vertical mill head |
| Lubricate system | Middle sleeve(MS4/MS3,MS4/MS2) |
| Work lamp |
Reduction sleeve(ISO50/MS4, MS4/MS3,MS4/MS2) |
| Mill arbor(22mm,32mm) |
| Specification | Unit | Technical parameters | |||
| Spindle taper | 7:24 ISO50 | ||||
|
Distance from spindle center Line to worktable |
mm | 0-420 | |||
|
Distance from spindle center Line to arm |
mm | 210 | |||
| Spindle speed | rpm | (12steps) 35-1500 | |||
| Worktable size | mm | 1600×360 | |||
| Worktable max.rotate angle | |||||
| Worktable travel | Longitudinal | Manual | mm | 1020 | |
| Power | mm | 1000 | |||
| Cross | 320 | ||||
| Vertical | mm | 420 | |||
| Worktable Longitudinal/Cross power feed |
12steps 24-800mm/min Rapid:1800mm/min |
||||
| Worktable elevating power feed | mm/min |
12steps 6-200mm/min Rapid:450mm/min |
|||
| Worktable“T”slot | Number | 5 | |||
| Width | mm | 18 | |||
| Distance | mm | 70 | |||
| Ram travel | kg | 350 | |||
| Main motor | kw | 7.5 | |||
| Worktable power feed motor | kw | 1.5 | |||
| Coolant pump | kw | 0.09 | |||
| Coolant flow | L/min | 25 | |||
| Overall dimension(L×W×H) | mm | 2080×2230×1860 | |||
| Net weight | kg | 3000 | |||
