| SPECIFICATION | UNIT | XW6136 |
| TABLE SIZE | MM | 1320×360 |
| TABLE TRAVEL (X,Y) | MM | 1000×300 |
| NO./WIDTH/DISTANCE OF T-SLOT | MM | 3-14-95 |
| SPINDLE SPEEDRANGE | R/MIN | 58-1800 (12 STEPS) |
| SPINDLE TAPER | ISO50(H),ISO40(V) | |
|
TABLE FEEDSPEEDRANGE IN (X,Y,Z) DIRECTIONS |
MM/MIN | 22-420/22-393/10-168 |
|
DISTANCE BETWEEN SPINDLE AXIS AND TABLE SURFACE |
MM | 0-400 |
|
DISTANCE BETWEEN SPINDLE AXIS AND RAM SURFACE |
MM | 175 |
|
DISTANCE BETWEEN VERTICAL SPINDLE AXIS AND VERTICAL GUIDEWAY |
MM | 320 |
| RAM TRAVEL | MM | 500 |
| SPINDLE MOTOR POWER | KW | 4 |
| OVERALL DIMENSION(L×W×H) | MM | 2070×2050×1950 |
| NET WEIGHT | KG | 2200 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

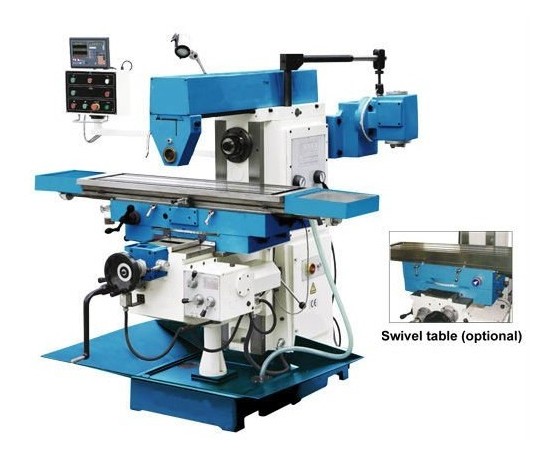

XW6136 Horizontal milling machine swivel table
