| Specification | Units | X6140 |
| Table size | mm | 1700x400 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 18 |
| Max.load | kg | 800 |
|
Longitudinal travel(manual/auto) |
mm | 900/800 |
|
Cross travel (manual/auto) |
mm | 315/300 |
|
Vertical travel (manual/auto) |
mm | 380/360 |
| Cutting feed speed | mm/min |
X:19--950 Y:19--950 Z:6.3--317 |
| Rapid feed speed | mm/min | X-2300 Y-2300 Z-770 |
| Spindle speed range | r/mm | 30-1500 |
| Spindle speed step | - | 18 (steps) |
|
Distance between spindle axis table surface |
mm | 30~410 |
| Power of spindle motor | kw | 11 |
| Overall dimension(LxWxH) | mm | 2556x2159x1770 |
| Net weight | kg | 3850 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

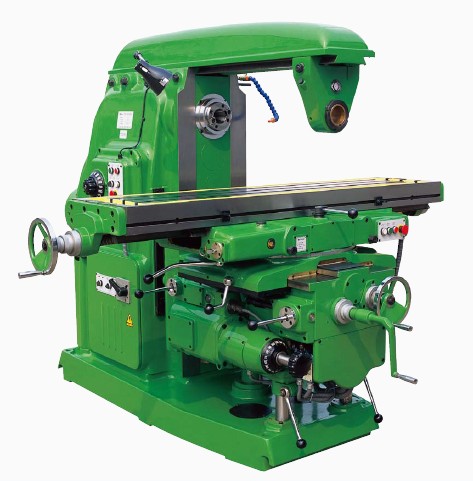

X6140 Horizontal milling machine
