| Specification | Units | X6132 | X6132BH |
| Table size | mm | 320x1325 | 320x1600 |
| Longitudinal travel(manual/auto) | mm | 700/680 | 900/800 |
| Cross travel(manual/auto) | mm | 255/240 | 255/240 |
| Vertical travel(manual/auto) | mm | 320/300 | 410/390 |
| Work table swivel angel | ±45 | ±45 | |
| Cutting feed speed | mm/min |
X:19--950 Y:19--950 Z:6.3--317 |
X:19--950 Y:19--950 Z:6.3--317 |
| Rapid feed speed | mm/min | X-2300 Y-2300 Z-770 | X-2300 Y-2300 Z-770 |
| Spindle speed range | r/mm | 30-1500 | 30-1500 |
| Spindle speed step | - | 18 (steps) | 18 (steps) |
|
Distance between spindle axis table surface |
mm | 30~350 | 30~440 |
| Power of spindle motor | kw | 7.5 | 7.5 |
| Feed motor power | kw | 2.2 | 2.2 |
| Overall dimension(LxWxH) | mm | 2300x1770x1600 | 2300x2050x1800 |
| N.W/G.W | kg | 2650/2950 | 2940/3240 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

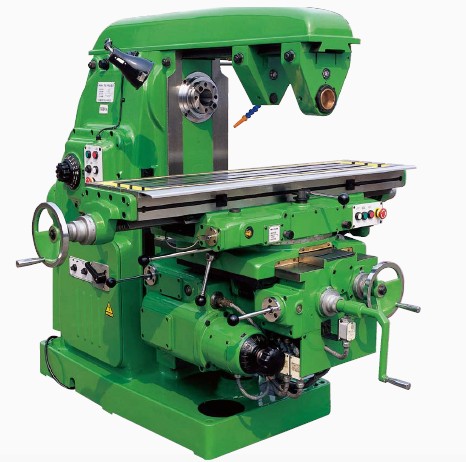

X6132 Horizontal milling machine
