| Unit | X5040 | |
| Table size | mm | 400X1700 |
| T-slots（NO./Width/Pitch) | 3/18/90 | |
| Longitudinal travel(manual/auto) | mm | 900/880 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 385/365 |
| Rapid feed speed | mm/min | 2300/1540/770 |
| Spindle pore | mm | 29 |
| Spindle taper | 7:24 ISO50 | |
| Spindle speed range | r/min | 30~1500 |
| Spindle speed step | steps | 18 |
| Spindle travel | mm | 85 |
| Max.swivel angle of vertical milling head | ±45° | |
|
Distance between spindle nose and table surface |
mm | 30-500 |
|
Distance between spindle axis and colomn guideway |
mm | 450 |
| Feed motor power | kw | 3 |
| Main motor Power | kw | 11 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 |
| Net weight | kg | 4250/4350 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

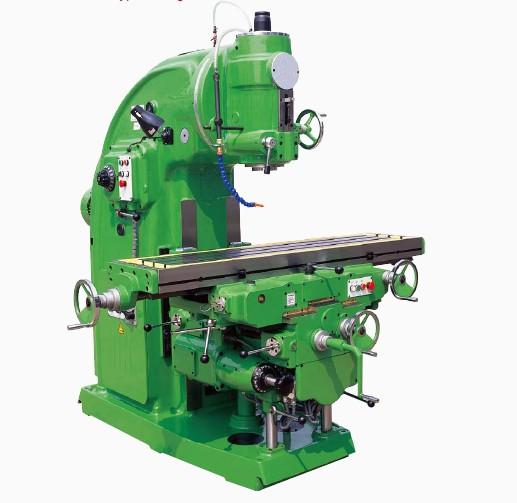

X5040 Vertical milling machine
