| Specification | Unit | X5032 | X5032B |
| Table size | mm | 320X1325 | 320X1600 |
| T-slots (NO./Width /Pitch) | 3/18/70 | 3/18/70 | |
| Longitudinal travel (manual/auto) | mm | 700/680 | 900/880 |
| Cross travel (manual/auto) | mm | 255/240 | 255/240 |
| Vertical travel (manual/auto) | mm | 350/330 | 350/330 |
| Rapid feed speed | mm/min | 2300/1540/770 | 2300/1540/770 |
| Spindle bore | mm | 29 | 29 |
| Spindle taper | 7:24 ISO50 | 7:24 ISO50 | |
| Spindle speed range | r/min | 30~1500 | 30~1500 |
| Spindle speed step | steps | 18 | 18 |
| Spindle travel | mm | 70 | 70 |
| Max.swivel angle of vertical milling head | ±45° | ±45° | |
|
Distance between spindle nose and table surface |
mm | 60-410 | 60-410 |
|
Distance between spindle axis and column guide way |
mm | 350 | 350 |
| Feed motor power | kw | 2.2 | 2.2 |
| Main motor Power | kw | 7.5 | 7.5 |
|
Overall dimensions (L×W×H) |
mm |
2294×1770 ×1904 |
2294×1770 ×1904 |
| Net weight | kg | 2900/3200 | 2900/3200 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

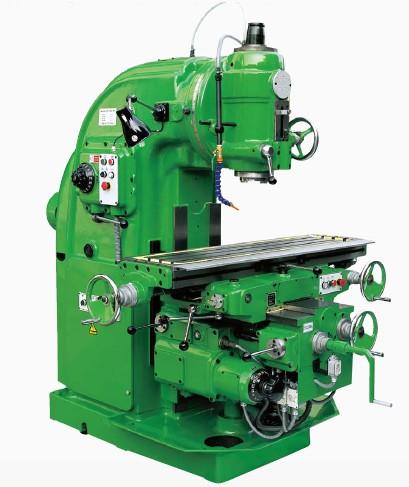

X5032 Vertical milling machine
