Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

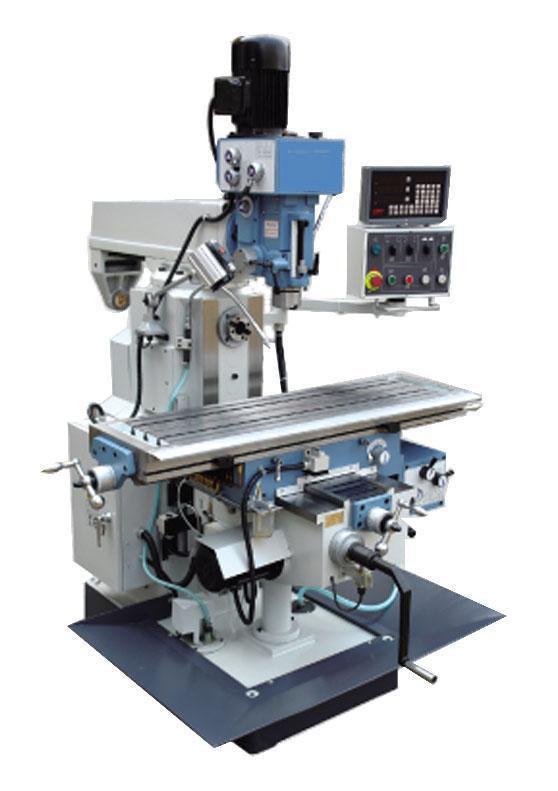

ZX6350 Series

Model Unit ZX6350C ZX6350A ZX6350ZA
Spindle taper   M.T.4/ISO40/ISO30/R8 ISO40/ISO30/R8/MT4 MT4/ISO40/ISO30/R8
Distance vertical spindle
 to table		 mm 100-460 90-390 100-400
Distance horizontal spindle
 to table		 mm 0-360 0-300 0~300
Distance spindle to column mm 200-500 200-500 200~550
Spindle seeds range r/min (8 steps)115-1750(vertical)；(12 steps)40-1300(horizontal) (8 steps)115-1750(vertical)；(12 steps)40-1300(horizontal) (8 steps)60-1500(vertical)；(12 steps)40-1300(horizontal)
Automatic Feed Series sleeve mm 120(vertical) 120(vertical) 120(vertical)
Table size mm 1120×280 1250×320 1250×320
Table travel mm 600/250/360 600/300/300 800/300/300
Distance horizontal spindle
 to arm		 mm 175 175 175
Table feeds range(x/y) mm/min 12-370(8 steps)(max.540) 22-555(8 steps)(max.810) 22-555(8 steps)(max.810)
T of table (no./width/distance) mm 3/14/63 3/14/70 3/14/70
Main motor kw 0.85/1.5(vertical);
2.2(horizontal)		 0.85/1.5(vertical);
2.2(horizontal)		 0.85/1.5(vertical);
2.2(horizontal)
Motor of table power feed w 370 750 750
Coolant pump motor w 40 40 40
N.W/G.W. kg 1250/1450 1450/1600 1450/1600
Overall dimension mm 1660×1340×2130 1700×1480×2150 1700×1480×2150
