Milling, drilling, boring, reaming
Head swivels 90degrees of perpendicular
Spindle micro feed
Positive spindle
Adjusted gibs on table
Accurate position, strong rigidity, strong cutting power

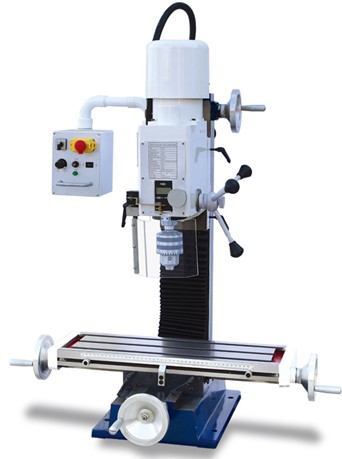

| Model | XJ9520 |
| Drilling capacity | 20mm |
| Max. face mill capacity | 63mm |
| Max. end mill capacity | 16mm |
| Spindle stroke | 50mm |
| Longitudinal travel | 350mm |
| Cross travel | 350mm |
| Spindle rotary angle | -45° ~+45° |
| Working table size | 600x180mm |
| Motor power | 1000W |
| Max. distance spindle to table | 400mm |
| Spindle taper | MT3/R8/SK30 |
| Spindle speed | 50-3000RPM |
| Net weight/Gross weight | 135Kg/175Kg |
| Packing size | 720X570X1000mm |
