*Variable speed
*Spindle micro feed
*DC motor
*Positive spindle lock
*Imported speed control unit

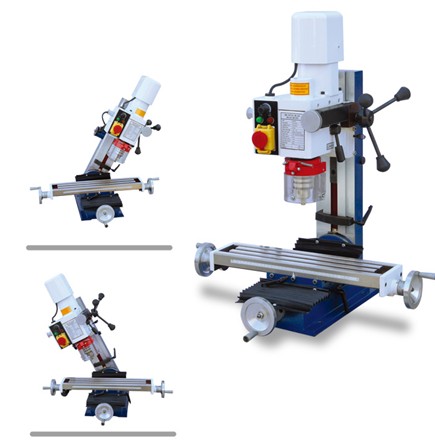

| XJ9512 MINI DRILLING & MILLING MACHINE | |
| Technical spec. | XJ9512 |
| Drilling capacity | 16mm |
| Max face mill capacity | 30mm |
| Max end mill capacity | 13mm |
| Spindle stroke | 180mm |
| Longitudinal travel | 250/300mm |
| Cross travel | 100/130mm |
| Spindle rotary angle | -45~+45 |
| Working table size | 410/460x112mm |
| Motor power | 550W |
| Max distance spindle to table | 220mm |
| Spindle taper | MT3 |
| Spindle speed | 50-2500RPM |
| Net weight/Gross weight | 62/80kg |
| Packing size | 570x510x740mm 640x565x720mm |
