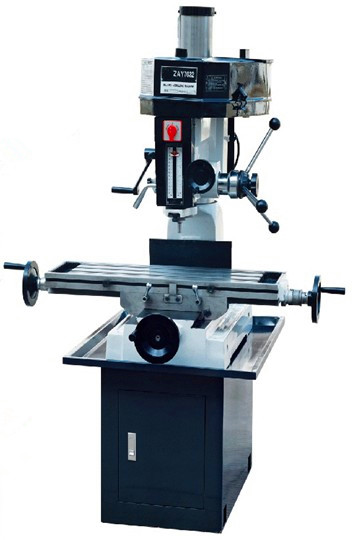

Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
| Model | ZAY7020 | ZAY7032 | ZAY7040 | ZAY7045 |
| Drilling capacity | 20mm | 32mm | 40mm | 45mm |
| Face milling capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
|
Distance from spindle nose to table |
435mm | 450mm | 450mm | 450mm |
|
Min.distance from spindle axis to column |
181.5mm | 203.5mm | 203.5mm | 203.5mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 12 | 12 | 12 | 12 |
|
Range of spindle speed 50Hz |
100-2200 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m |
| 60Hz | 120-2640 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m |
|
Swivel angle of headstock (horizontally) |
360° | 360° | 360° | 360° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
|
Forward and backward travel of table |
140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW |
| Net weight/gross weight | 130kg/190kg | 280kg/330kg | 283kg/333kg | 285kg/335kg |
| Packing size | 620×750×1000mm | 1020×820×1160mm | 1020×820×1160mm | 1020×820×1160mm |
