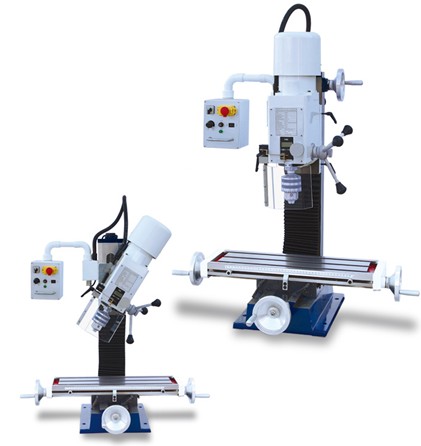

Milling, drilling, tapping, boring, reaming
Head swivels 90degrees of perpendicular
Spindle micro feed
Digital display for spindle travel
Positive spindle lock
Adjusted gibs on table
Accurate position, strong rigidity, strong cutting power
| Model | XJ9525 |
| Drilling capacity | 25mm |
| Max. face mill capacity | 60mm |
| Max. end mill capacity | 20mm |
| Spindle stroke | 50mm |
| Longitudinal travel | 550mm |
| Cross travel | 200mm |
| Spindle rotary angle | -90° ~+90° |
| Working table size | 800x180mm |
| Motor power | 1200W |
| Max. distance spindle to table | 400mm |
| Spindle taper | MT3 |
| Spindle speed | 50-3000RPM |
| Net weight/Gross weight | 145Kg/185Kg |
| Packing size | 920x600X1000mm |
