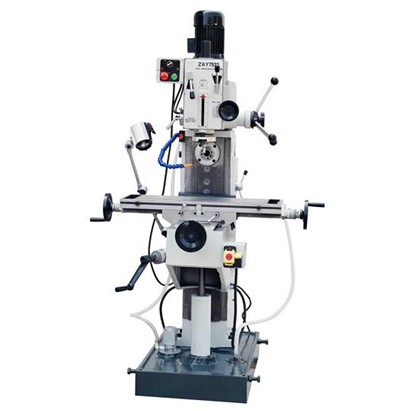

Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
| ITEM | ZAY7532 | ZAY7540 | ZAY7545 | ZAY7550 |
| Max.drilling capacity | 32mm | 40mm | 45mm | 50mm |
|
Max.milling capacity (end / face) |
25/100mm | 32/100mm | 32/100mm | 32/100mm |
|
Swivel angle of headstock(perpendicular) |
±90° | ±90° | ±90° | ±90° |
| spindle taper(end/face) | M.T.3 M.T.4 | M.T.4 | M.T.4 | M.T.4 |
|
Distance from spindle nose to worktable surface |
80-480mm | 80-480mm | 80-480mm | 80-480mm |
| spindle travel | 130mm | 130mm | 130mm | 130mm |
| Beam travel | 500mm | 500mm | 500mm | 500mm |
|
step of spindle speed(end/face) |
6\12 | 6\12 | 6\12 | 6\12 |
|
range of spindle speed(end/face) 50Hz |
80-1250 /38-1280 (r/min) | 80-1250 /38-1280 (r/min) | 80-1250 /38-1280 (r/min) | 80-1250 /38-1280 (r/min) |
| 60Hz (4 Poles) | 95-1500 /45-1540 (r/min) | 95-1500 /45-1540 (r/min) | 95-1500 /45-1540 (r/min) | 95-1500 /45-1540 (r/min) |
| Worktable size | 800×240mm | 800×240mm | 800×240mm | 1000×240mm |
|
Forward and afterward travel of worktable |
300mm | 300mm | 300mm | 300mm |
|
Left and right travel of worktable |
585mm | 585mm | 585mm | 785mm |
|
Vertical travel of worktable |
400mm | 400mm | 400mm | 400mm |
|
Min.distance from spindle axis to column |
290mm | 290mm | 290mm | 290mm |
| Power(end/face) | 0.75KW(1HP)/1.5KW | 1.1KW(1.5HP)/1.5KW | 1.5KW(2HP)/1.5KW | 1.5KW(2HP)/1.5KW |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW | 0.04KW |
|
Net weight/ Gross weight |
910kg/1010kg | 913kg/1013kg | 915kg/1015kg | 930kg/1030kg |
| Packing size | 1020×1350×1850mm | 1020×1350×1850mm | 1020×1350×1850mm | 1220×1350×1850mm |
