Drilling & milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Drilling & milling machine

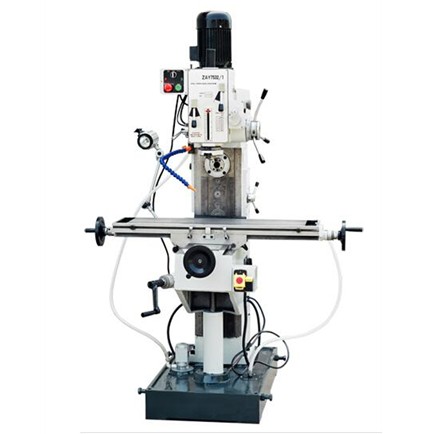

ZAY7532/1 ZAY7540/1 ZAY7545/1 ZAY7550/1

ITEM ZAY7532/1 ZAY7540/1 ZAY7545/1 ZAY7550/1
Max.drilling capacity 32mm 40mm 45mm 50mm
Max.milling capacity
(end/face)		 25/100mm 32/100mm 32/100mm 32/100mm
Swivel angle of
headstock(perpendicular)		 ±90° ±90° ±90° ±90°
spindle taper
(end/face)		 M.T.3  M.T.4 M.T.4 M.T.4 M.T.4
Distance from
spindle nose to
worktable surface		 80-480mm 80-480mm 80-480mm 80-480mm
spindle travel 130mm 130mm 130mm 130mm
beam travel 500mm 500mm 500mm 500mm
step of spindle
speed(end/face)		 6\12 6\12 6\12 6\12
Range of spindle
speed(end/face)  50HZ		 90-1600 /38-1280 (r/min) 90-1600 /38-1280 (r/min) 90-1600 /38-1280 (r/min) 90-1600 /38-1280 (r/min)
60HZ (4 poles) 110-1920 /45-1540 (r/min) 110-1920 /45-1540 (r/min) 110-1920 /45-1540 (r/min) 110-1920 /45-1540 (r/min)
Step of spindle
auto-feeding
(end/face)		 3 3 3 3
Range of spindle
auto-feeding
(end/face)		 0.12 0.18 0.25 0.12 0.18 0.25 0.12 0.18 0.25 0.12 0.18 0.25
Worktable size 800×240mm 800×240mm 800×240mm 1000×240mm
Forward and
afterward travel
of worktable		 300mm 300mm 300mm 300mm
Left anf right
travel of worktable		 585mm 585mm 585mm 785mm
Vertical travel
of worktable		 400mm 400mm 400mm 400mm
Min.distance from
spindle axis
to column		 290mm 290mm 290mm 290mm
Power(end/face) 0.75KW(1HP)/1.5KW 1.1KW(1.5HP)/1.5KW 1.5KW(2HP)/1.5KW 1.5KW(2HP)/1.5KW
Cooling pump
power		 0.04KW 0.04KW 0.04KW 0.04KW
Net weight/
Gross weight		 930kg/1030kg 933kg/1033kg 935kg/1035kg 950kg/1050kg
Packing size 1020×1350×1850mm 1020×1350×1850mm 1020×1350×1850mm 1220×1350×1850mm
