This model pass CE standard.

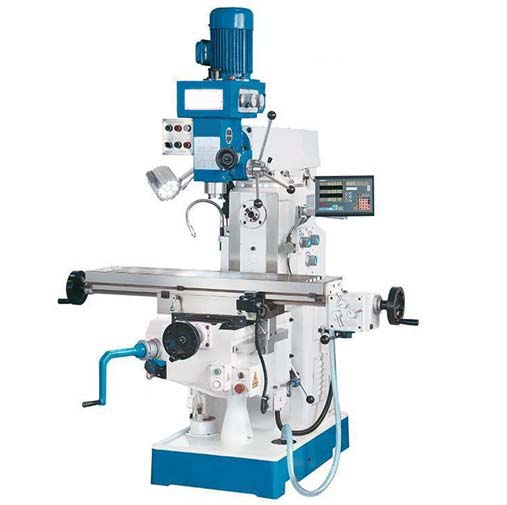

ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing and components manufacturing.
The vertical head swivels to both sides (+-) 90
Standard accessories.
3-axis position indicator, 2 milling arbor (22, 27mm), collet set, drill chuck, mill chuck, reduction sleeve,
Work light, coolant.
Optional Accessories:
DRO on X, Y, Z--AXIS
Clamping kit
Universal divind head
Rotary work table.
| Model | Unit | ZX6350C |
| Spindle taper | M.T.4/ISO40/ISO30/R8 | |
| Distance vertical spindle to table | mm | 100-460 |
| Distance horizontal spindle to table | mm | 0-360 |
| Distance spindle to column | mm | 200-500 |
| Spindle seeds range | r/min | (8 steps)115-1750(vertical)；(12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1120×280 |
| Table travel | mm | 600/250/360 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 12-370(8 steps)(max.540) |
| T of table (no./width/distance) | mm | 3/14/63 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 370 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1250/1450 |
| Overall dimension | mm | 1660×1340×2130 |
