2. Vertical milling machine and horizontal milling machine are gear drive
3. The torque transfer is dood, high processing efficiency, equipped with mechanical feed
device, realizing the workbench longitudinal automatic feeding, reduce the labor intensity,
improve the machine accuracy and surface finish.
4. Body rail quenching treat, with good abrasion resistance.
5. The milling head is installed on the front end of the sliding arm, can be moved back and
forth,
6. Not only in the vertical plane within turning 45 degrees, but also on the body rotating
360 degrees, has Good processing universal property.
Standard accessories:
Drill chuck, mill chuck, spindle arbors, coolant, worklight, chip tray.
Optional accessories:
DRO--on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit.

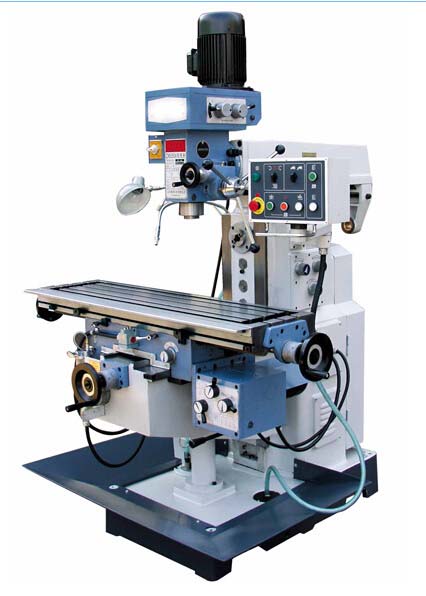

| Model | Unit | ZX6350A |
| Spindle taper | ISO40/ISO30/R8/MT4 | |
| Distance vertical spindle to table | mm | 90-390 |
| Distance horizontal spindle to table | mm | 0-300 |
| Distance spindle to column | mm | 200-500 |
| Spindle seeds range | r/min | (8 steps)115-1750(vertical)；(12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1250×320 |
| Table travel | mm | 600/300/300 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 22-555(8 steps)(max.810) |
| T of table (no./width/distance) | mm | 3/14/70 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 750 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1450/1600 |
| Overall dimension | mm | 1700×1480×2150 |
