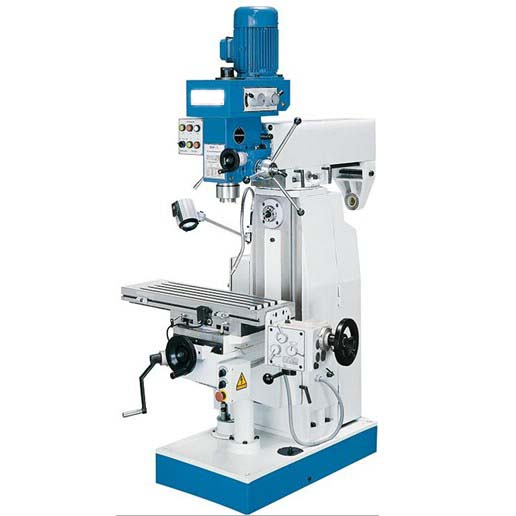

1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill.
Standard accessories:
Drill chuck,Mill chuck,Reduction sleeve,Machine vice,Wrench,Inner-hexagonal,Camlock,Wedge shifter,Spindle arbor,Horizontal millnig bilt,Operation manual,Quality certificate,Pac
| SPECIFICATION | UNIT | ZX7550C | ZX7550CW |
| TABLE SIZE | MM | 800×240 | 800X240 |
| SPINDLE SPEED RANGE | R/MIN | 115-1750 | 115-1750 |
| TABLE TRAVEL | MM | 400×200 | 385X200 |
| MAX.DRILLING DIA. | MM | 50 | 50 |
| MAX. END MILLING WIDTH | MM | 100 | 100 |
| MAX. TAPPING DIA. | MM | M16 | M16 |
| MAX.VERTICAL MILLING DIA. | MM | 25 | 25 |
|
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE |
MM | 70-420 | 70-420 |
| SPINDLE SPEED | RPM | 115-1750 | 115-1750V/58-1355H |
| SPINDLE TRAVEL | MM | 120 | 120 |
| SPINDLE MOTOR POWER | KW | 0.85/1.5 | 0.85/1.5 |
| HORIZONTAL MOTOR POWER | KW | 2.2 | |
| OVERALL DIMENSION(L×W×H) | MM | 1290×1140×2100 | 1290×1140×2100 |
| NET WEIGHT | KG | 800 | 970 |
