2. Easily shiftable gear drive ensures power transmission without losses
3. with v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch

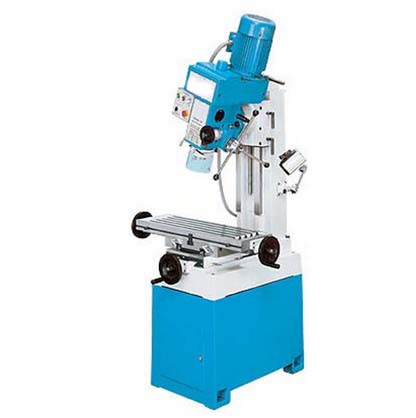

| Specifications | ZX50C |
| Max.drilling dia.(mm) | 50 |
| Max.end milling width(mm) | 100 |
| Max.vertical milling dia.(mm) | 25 |
| Max.taopping dia. | M16 |
|
Distance between spindle nose and table surface(mm) |
50-410 |
| Spindle speed range (r.p.m) | 110-1760 |
| Spindle travel(mm) | 120 |
| Table size(mm) | 800×240 |
| Table travel(mm) | 400×215 |
| Overall dimensions(mm) | 1270×950×1800 |
| Motor(kw) | 0.85/1.5 |
| N.W/G.W(kg) | 500/600 |
