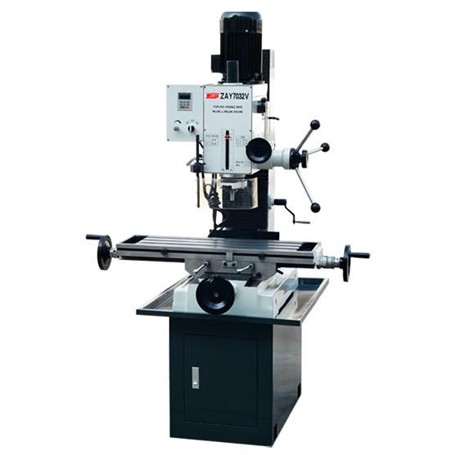

Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
| ITEM | ZAY7032V | ZAY7040V | ZAY7045V |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
|
Distance from spindle nose to table |
400mm | 400mm | 400mm |
|
Min.distance from spindle axis to column |
285mm | 285mm | 285mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
|
Range of spindle speed (2 steps) |
100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, |
|
Swivel angle of headstock (perpendicular) |
±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
|
Forward and backward travel of table |
175mm | 175mm | 175mm |
|
Left and right travel of table |
500mm | 500mm | 500mm |
| Motor power(DC) | 1.1KW | 1.1KW | 1.5KW |
| Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
| Net weight/Gross weight | 300kg/350kg | 310kg/360kg | 310kg/360kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
