Drilling & milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Drilling & milling machine

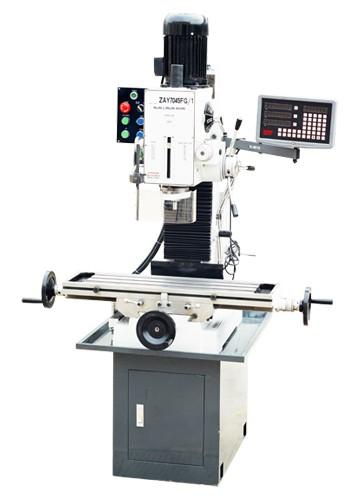

ZAY7032FG/1

SPECIFICATION
ITEM ZAY7032FG/1 ZAY7040FG/1 ZAY7045FG/1
Drilling capacity 32mm 40mm 45mm
Max.boring diameter 50mm 60mm 70mm
Max Face mill capacity 63mm 80mm 80mm
Max End mill capacity 20mm 32mm 32mm
Max distance from spindle nose to table 450mm 450mm 450mm
Min distance from spindle axis to column 260mm 260mm 260mm
Spindle travel 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Step of spindle speed 6 6 6
Range of spindle speed     50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Auto-feeding step of spindle 6 6 6
Auto-feeding amount of spindle 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r
Swivel angle of headstock
(perpendicular)		 ±90° ±90° ±90°
Automaticlly lifting of spindle
 ( As customer's requirement)		 240mm/min 240mm/min 240mm/min
Power feed attachment for table
( As customer's requirement)		 stepless stepless stepless
Table size 800×240mm 800×240mm 800×240mm
Forward and backward travel of table 175mm 175mm 175mm
Left and right travel of table 500mm 500mm 500mm
Motor Power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
Voltage/Frequency As customer's requirement As customer's requirement As customer's requirement
Net/Gross weight 320kg/370kg 323kg/373kg 325kg/375kg
Packing size 770×880×1160mm 770×880×1160mm 770×880×1160mm
Loading amount 36pcs/20＇container 36pcs/20＇container 36pcs/20＇container
