| SPECIFICATION | |||
| ITEM | ZAY7045L/1 | ZAY7045AFG | ZAY7045AFG/1 |
| Max Drilling capacity | 45mm | 45mm | 45mm |
| Max Face mill capacity | 80mm | 80mm | 80mm |
| Max End mill capacity | 32mm | 32mm | 32mm |
| Max distance from spindle nose to table | 530mm | 425mm | 425mm |
| Min distance from spindle axis to column | 280mm | 279mm | 279mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.4 | M.T.4 | M.T.4 |
| Step of speed | 12 | 6 | 6 |
| Range of spindle speed 50HZ | 80-1575 r.p.m | 80-1250 r.p.m | 90-1600 r.p.m |
| 2 poles motor 60HZ | 160-3150 r.p.m | 100-1500 r.p.m | 110-1920 r.p.m |
| Auto-feeding step of spindle | / | 6 | 3 |
| Auto-feeding range of spindle | / | 0.05-0.35mm/r | 0.12 0.18 0.025 |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Auto-lifting for spindle (As customer's requirement) | Auto-lifting for spindle | / | / |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 300mm | 205mm | 205mm |
| Left and right travel of table | 585mm | 585mm | 585mm |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Drilling & milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Drilling & milling machine

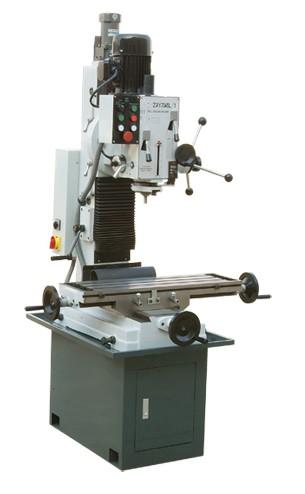

ZAY7045L/1
