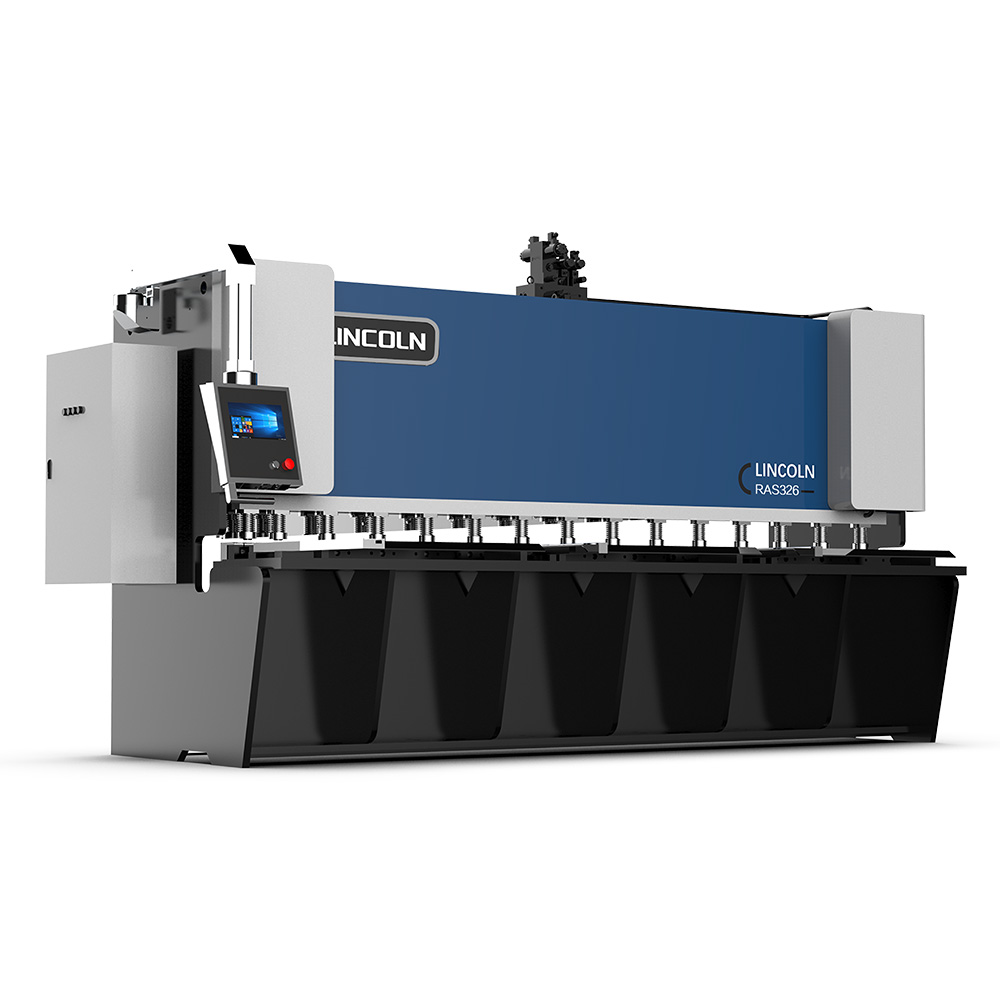

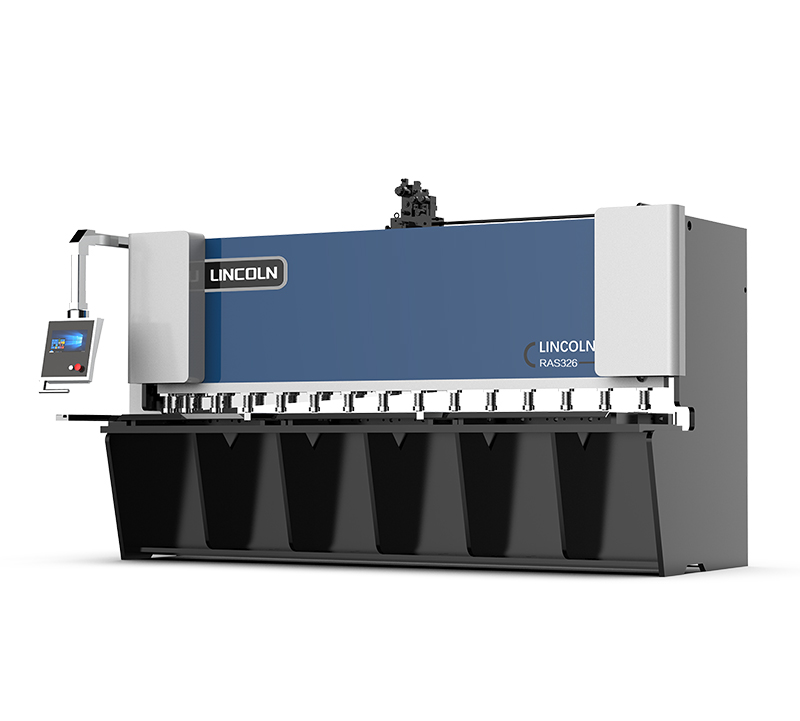

  • NC Hydraulic Guillotine Shearing Machine

  • NC Hydraulic Guillotine Shearing Machine

    • 0.00
      0.00
Product Description

Main Features:


  • Shears are manufactured to the highest standard withstrict quality control to achieve a long life to minimum maintenance.

  • The frame consists of heavy duty, solid welded steelstructure giving maximum rigidity and performance.

  • Standard controls comprise of electro-hydraulicoperated variable rake angle, motorised front operated backgauge and inching mode for up-stroke and down stroking.

  • 4 edge high carbon high chrome D2 quality shear blades.Independent clamping of hold downs, squaring arm, with disappearing stops


Controller:

Specifcations:


ModelUnitRAS156RAS256RAS326RAS328RAS376RAS406RAS2510RAS3210
Cutting Thicknessmm6.56.56.586.56.51010
Cuting Lengthmm15502500320032003700400025003200
Variable Cutting Angle°1~3°1~3°1~3°1~3°1~3°1~3°1~3°1~3°
No. of Plate Holderspcs814171719231217
of Stroke /min SPM
14/1911/1711/179/158/108/106/96/9
Clamp ForceKN407595100110130120120
Cutting ForceKN170170170200250250250330
Backguage Strokemm750750750750750750750750
MotorKW7.57.57.57.511111515
Weight (Approx)Tons2.84.566.57.596.88
Working Heightmm800800880880900900900900
Lengthmm22303140375037504480483032453855
Widthmm11701740177017701840184018301830
Heightmm17502040215021502100210023902390


RAS2513RAS3213RAS3713RAS4013RAS2516RAS3216RAS4016RAS2520RAS3220
131313131616162020
250032003700400025003200400025003200
1~3°1~3°1~3°1~3°1~3°1~3°1~3°1~3°1~3°
121821231218231015
6/95/95/74/65/76/114/64/54/5
120180210230140200250200300
40055060065065065075010001000
75010001000100010001000100010001000
18.518.518.518.52222303037
79.513.5151315181820
9309301000100010001000100010001000
328538554350485534404010501034404010
183018301830183019401940198019801980
239023902390239028302830283028302830
