CNC Press Brake
- Price： 0.00

  List price： 0.00

Product information

Product Description

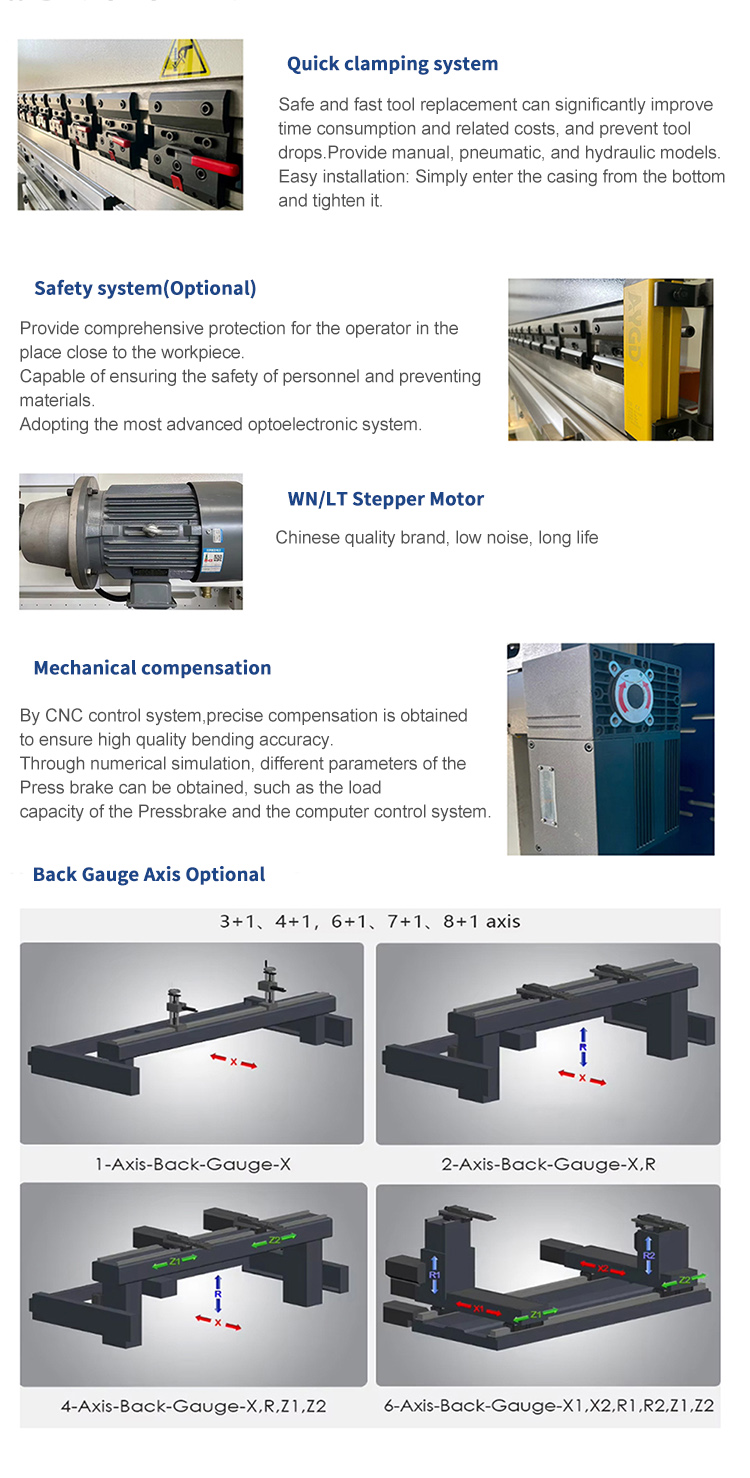

Main Features:

Heavy duty machine frame by holistic machining;
Standard 4+1 Axis, high precision mechanical crowning table;
Bosch-Rexroth hydraulics original fromGermany,closed loop;
High-speed cylinders using NOK/SKF/PARKER seals;
Unique design of backgauge beam and fingers ;
Can option with different CNC controller and special tooling.

Controller:

Specifcations:

Model		FCNC-50T/2000	FCNC-70T/2500	FCNC-100T/3200	FCNC-100T/4000	FCNC-130T/3200	FCNC-130T/4000	FCNC-170T/3200	FCNC-170T/4000
Bending Capacity	Tons	50	70	100	100	130	130	170	170
Max. Bending Length	mm	2000	2500	3200	4000	3200	4000	3200	4000
Distance Between Frames	mm	1700	2050	2900	3200	2900	3200	2700	3500
Throat Depth	mm	300	300	400	400	400	400	400	400
Cylinder Stroke	mm	160	160	200	200	200	200	200	200
Day Light Opening	mm	420	420	435	435	435	435	435	435
Die Setting Height	mm	470	470	530	530	530	530	530	530
Main Motor	KW	5.5	7.5	7.5	7.5	11	11	11	11
Oil Volumn	LITERS	160	300	400	500	400	500	400	500
Fast Approach Speed	mm/Sec	200	200	180	150	180	150	150	150
Bending Speed	mm/Sec	17	13	10	10	10	10	10	10
Return Speed	mm/Sec	180	160	135	135	135	135	135	135
Length	mm	2300	2800	3500	4300	3500	4300	3500	4300
Width	mm	1500	1500	1650	1650	1650	1650	1700	1700
Height	mm	2270	2270	2660	2660	2660	2660	2660	2660
Weight	KG	5000	6000	8700	9500	9000	10000	9500	11500

FCNC-170T/6000	FCNC-200T/3200	FCNC-200T/4000	FCNC-200T/6000	FCNC-250T/3200	FCNC-250T/4000	FCNC-250T/6000	FCNC-320T/4000	FCNC-320T/6000
170	200	200	200	250	250	250	320	320
6000	3200	4000	6000	3200	4000	6000	4000	6000
5000	2700	3500	5000	2700	3500	5000	3500	5000
400	400	400	400	400	400	400	400	400
200	200	200	200	250	250	250	300	300
435	425	425	425	525	525	525	525	525
530	520	520	520	600	600	600	600	600
11	15	15	15	18.5	18.5	18.5	22	22
600	400	500	600	400	500	600	600	700
150	120	120	120	100	100	100	100	100
10	10	10	10	10	10	10	10	10
135	135	135	85	120	120	75	120	75
6300	3500	4300	6300	3500	4300	6300	4300	6300
1700	1800	1800	1850	1920	1920	2000	2050	2130
3100	2760	2760	2860	2960	2960	3330	3100	3330
18000	10000	12000	20000	13500	15500	24000	22000	30000
