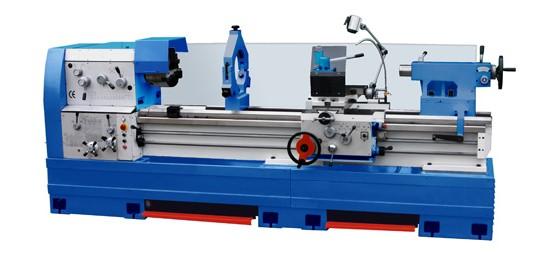

CY Large Spindle Bore precision Lathe
Precision ground
Clutched head stock
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feed rod
Rapid traverse(optional)
Main spindle supported at 2 points with precision taper roller bearings
2500-3000mm Lathe with follow chip guard
|
SPECIFICATIONS |
MODELS |
|||
|
C6260Y |
C6266Y |
C6280Y |
||
|
Capacity |
Swing over bed |
600 (233/5") |
660mm(26") |
800mm(311/2") |
|
Swing over cross slide |
375mm(143/4) |
435mm(171/8") |
545mm(212/5") |
|
|
Swing in gap |
800(311/2") |
860(334/5") |
1000(39") |
|
|
Valid length of gap |
2800mm(11" |
|||
|
Max. length of work piece |
1000mm (391/3") 1500mm (59") 2000mm(783/4") 3000mm(118") |
|||
|
Width of bed ways |
400mm(157/10") |
|||
|
Headstock |
Spindle nose |
ISO--c11 or ISO--D11 |
||
|
Spindle bore |
103mm(4") |
|||
|
Range of spindle speeds/step |
18steps 9-1275rpm (ccw) / 6 steps 16-816rpm (cw) |
|||
|
Feeds & threads |
Max. travel of compound rest |
110mm(41/3") |
||
|
Max. travel of cross slide |
325mm(124/5") |
|||
|
Longitudinal feeds range |
12mm or 2 TPI |
|||
|
Section of tool |
32*32mm |
|||
|
Longitudinal feeds range |
72kinds 0.073-4.066 mm/rev |
|||
|
Cross feeds range |
72kinds 0.036-2.033 mm/rev |
|||
|
Metric threads range |
72kinds 0.5-112 mm |
|||
|
Inch threads range |
72kinds 56-1/4 inch |
|||
|
Module threads range |
36kinds 0.5-7 |
|||
|
Diametral threads range |
36kinds 56-4D.P |
|||
|
Tail stock |
Dia. of tailstock sleeve |
90mm |
||
|
Morse taper of tailstock sleeve |
Morse No.6 |
|||
|
Travel of tailstock sleeve |
150mm |
|||
|
Cross adjustment range |
10mm |
|||
|
Motor |
Power of main motor |
7.5kw or 11kw |
||
|
Power of quick-travel motor |
250w |
|||
|
Power of coolant pump |
125w |
|||
|
Power of coolant pump |
220v,380v,440v(50HZ£¬60HZ) |
|||
|
Packing Size(L*W*H) |
1000mm |
2820*1300*2100mm |
||
|
1500mm |
3320*1300*2100mm |
|||
|
2000mm |
3820*1300*2100mm |
|||
|
3000mm |
4820*1300*2100mm |
|||
Standard Accessories
3-jaw chuck (250mm)
4-jaw chuck (320mm)
Face plate
Steady rest
Follow rest
Splash guard
Stand & oil tray
Halogen work lamp
Toolbox & tools
Coolant system
Foot brake
Optional Accessories
Quick change tool post
Turning tools
Leadscrew cover
Chuck guard
Tool post cover
Digital readout system
Taper turning attachment
Rapid moving attachment
