Guide ways ground to ensure high accuracy
Gears in headstock precisely ground to reduce noise.
Kinds of threads.
Electric system is reliable and safe.
Electromagnetic brake can be amounted when needed and color at user’s option
All geared feeding box well sealed with no leakage
Aproncase with overload protection, well sealed against leakage
Guide way adopting ultrasonic frequency quenching to ensure a long service life.
Tailstock locked by thread and camlock.
|

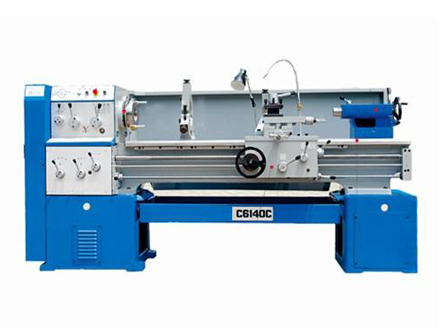

Model No. |
C6236C |
C6240C or F |
C6250C or F |
|
|
Distance between centers |
750/1000/1500 mm |
|||
|
Swing over bed |
360 mm |
400 mm |
500 mm |
|
|
Swing over gap |
520 mm |
560 mm |
660 mm |
|
|
Swing over cross slide |
190 mm |
230 mm |
330 mm |
|
|
Bed width |
360 mm |
|||
|
Spindle nose |
C6 |
|||
|
Spindle bore |
52 mm |
|||
|
Step of spindle speeds |
9 |
|||
|
Range of spindle speeds |
(C)40-1400 rpm (optional 1600) / (F) 16-1600 rpm |
|||
|
Range of inch threads |
(C) 2-40 T.P.1 / (F) 5-144 T.P.1/30 |
|||
|
Range of metric threads |
(C) 0.25-14 mm/19 / (F) 0.25-7 mm/17 |
|||
|
Range of module threads |
(C0 0.5-3.5M.P/11 / (F) 0.25-3.5M.P/12 |
|||
|
Cross slide travel |
180 mm |
220 mm |
||
|
Top slide travel |
95 mm |
|||
|
Tailstock quill travel |
140 mm |
|||
|
Tailstock quill diameter |
65 mm |
|||
|
Tailstock quill taper |
MT 4 |
|||
|
Main motor |
4 kw |
4 kw |
5.5 kw |
|
|
Packing size |
(2220x2470x2970)x1150x1590 mm |
|||
|
Net weight |
1350/1450/1600 kg |
1400/1500/1650 kg |
1500/1600/1750 kg |
|
Standard Accessories
3-jaw chuck (250mm)
4-jaw chuck (320mm)
Face plate
Steady rest
Follow rest
Splash guard
Stand & oil tray
Halogen work lamp
Toolbox & tools
Coolant system
Foot brake
Optional Accessories
Quick change tool post
Turning tools
Leadscrew cover
Chuck guard
Tool post cover
Digital readout system
Taper turning attachment
Rapid moving attachment
