Product Description

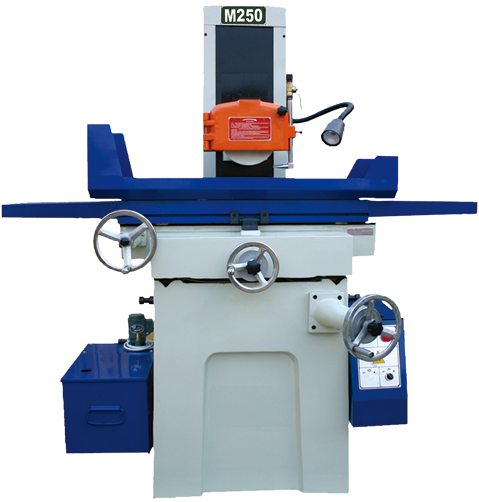

The surface grinding machine adopt the exceedingprecise class7(P4 level) ball bearing for spindle.
Bring transmission by synchronous belt,operating
simple and convenient
| Technical Parameters | unit | M250 | |
| Max.workpiece to be Ground ( L×W×H) | mm | 560×260×320 | |
| Max. Grinding Length | mm | 560 | |
| Max. Grinding Width | mm | 260 | |
| Table Size (L×W) | mm | 550×250 | |
| Number of T -Slot | mm×n | 12×1 | |
| Cross Feed On Handwheel | mm | 0.02/G 2.5/R | |
| Vertical Feed On Handwheel | mm | 0.01/G 1.25/R | |
| Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | |
| Spindle Speeds | 50Hz | rpm | 2850 |
| Spindle Motor | Kw | 1.5 | |
| Machine Size (L×W×H) | mm | 1800×1400×1800 | |
| Packing Size (L×W×H) | mm | 1200×1340×1960 | |
| Gross/Net | T | O.85 /0.90 | |
