1.P4 precision ball bearing for spindle
2.Bring transmission by synchronous belt
3.Size:480x200
4.OEM

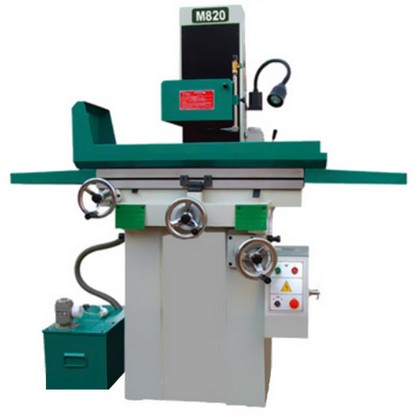

| Technical Parameters | unit | M820 | |
| Max.workpiece to be Ground ( L×W×H) | mm | 520×220×490 | |
| Max. Grinding Length | mm | 530 | |
| Max. Grinding Width | mm | 220 | |
| Distance From Table Surface To Spindle Center | mm | 450 | |
| Slide way | V-type rail with Steel-ball | ||
| V-type rail with Steel-ball | Kg | 200 | |
| Table Size (L×W) | mm | 480×200 | |
| Number of T -Slot | mm×n | 14×1 | |
| Speed OF Working Table | m/min | 3-23 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | |
| Wheel Size (dia.×width×bore ) | mm | 200×20×31.75 | |
| Spindle Speeds | 50HZ | rpm | 2850 |
| 0-6000 | |||
| Spindle Motor | Kw | 1.1 | |
| Coolant Pump | Kw | 0.4 | |
| Minimum of Numerical Display | mm | ||
| Machine Size (L×W×H) | mm | 1680×1140×1760 | |
| Packing Size (L×W×H) | mm | 1140×1250×1940 | |
| Gross,Net | T | O.80, 0.70 | |
| Spindle Motor | Kw | 1.1 | |
