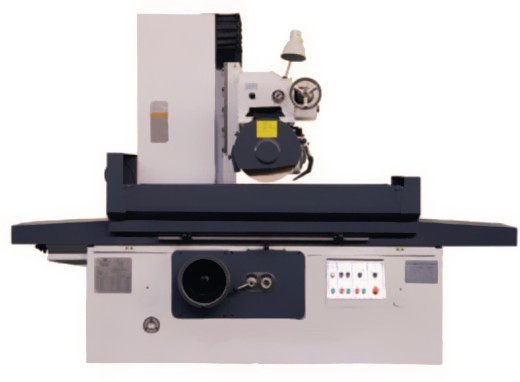

casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard
for horizontal spindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump,
which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing,
which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically.
It is easy to operate. The vertical feed of the wheel head is driven by hand.
It is also assembled with rapid elevating motor,
which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy.
It is easy to operate and deeply welcomed by the customers.
| Model | Unit | M7140 | M7140A | M7140Ax1600 | M7140A x2200 | |
| Worktable size(WxL) | Mm | 400x1000 | 400x1600 | 400x2200 | ||
| Max matching dimension(W x L) | Mm | 400x1000 | 400x1600 | 400x2200 | ||
|
Max distance between spindle center line and worktable surface |
Mm | 575 | 600 | |||
|
Longitudinal moving speed of worktable |
m/min | 3-27 | 3-25 | |||
| T-slot number x W | Mm | 3x18 | ||||
|
Wheel head Cross moving |
Continuous feed speed | m/min | 0.5-4.5 | |||
| Intermittent feed speed | Mm/t | 3-30 | ||||
| Hand wheel feed | Mm/gra | 0.02 | ||||
|
Vertical Moving of wheel head |
Rapid speed | Mm/min | 400 | |||
| Hand wheel feed | Mm/.gra | 0.005 | ||||
|
Wheel Head motor |
Power | Kw | 5.5 | 7.5 | ||
| Rotation speed | Rpm | 1440 | ||||
| Total power | Kw | 9 | 11 | 13.5 | ||
|
Max loading capacity of worktable (with chuck) |
Kg | 620 | 620 | 1000 | 1380 | |
| Chuck size(WxL) | Mm | 400x1000x1 | 400x800x2 | 400x1000x2 | ||
| Wheel size(ODxWxID) | Mm | 350x40x127 | 400x40x127 | |||
| Package dimension(LxWxH) | Cm |
295x220 x223 |
320x220 x233 |
500x220 x233 |
680x220 x233 |
|
| Machine Weight | t | 4.7 | 5.01 | 6.51 | 7.6 | |
