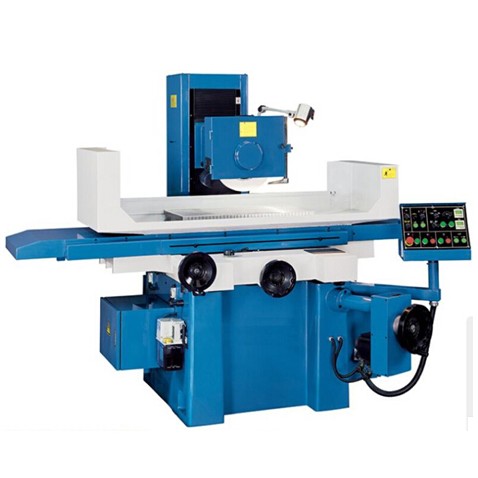

1.ISO certification
2.Taiwan cross leadscrew
3.Easy operation
4.Perfect painting
5.Siemens electric elements
The slide way with the TF wearable belt, and have been precision manual scraped.
Only by this, the machine have high accuracy and smooth moving and long working life.
Double wall structure casting is adopted on Column. And between outside and inside
wall gets strengthen rib.
Siemens PLC (only for AHD model)
For AHD model, the spindle elevating motor adopt Servo motor we choose Schneider and
Delta, and controlled by Siemens PLC. All the electro parts adopted world brand or
Chinese famous brand, such as the Siemens, Schneider, Tend, etc.
The vertical lift lead screw is made in Taiwan, Name:SHYH MINMACHINERY
The Cross feed screw is Ball screw, make sure the smooth moving. AC motor drove the cross
screw by timing belt then realize auto intermittent feed.
The spindle Motor, Y axis drove Motor, and other important parts, Are all made by famous
specialty manufacturer, SHVH MIN, Juli, Shuanglin etc..
The operator can set the Auto working (feed rate and times, spark grinding times by the
control panel. When finish grinding, the spindle will lift up automatically.
Standard accessories:
Coolant tank,Standard electro magnetic chuck, Balancing arbor, wheel flange, Wheel
extractor,Leveling wedge and bolt, Tool box and tools, Standard grinding wheel, Working lamp,
Wheel dresser stand (without diamond pen), Build in electro magnetic chuck controller,
PLC auto grinding controller (only for AHD models)
| MODEL | Unit | SGA4080AH | SGA40100AH | |
| MODEL | SGA4080AHR | SGA40100AHR | ||
| MODEL | SGA4080AHD | SGA40100AHD | ||
| Table size(W x L) | mm | 406x813 | 406x1020 | |
| Max longitudinal travel | mm | 910 | 1130 | |
| Max cross travel | mm | 450 | 450 | |
| Max distance from spindle to table | mm | 580 | 580 | |
| Electro magnetic chuck size | mm | 400x800 | 400x1000 | |
|
Speed of table longitudinal movement |
m/min | 7-23 | ||
|
Table transverse movement |
Auto feed | mm/min | 0.1-8 | |
| Rapid speed | mm/min | 990 | ||
| Feed of handwheel | Mm/div | 0.02 | ||
|
Wheelhead vertical movement |
Auto feed | mm |
--(H/AH/AHR model) 0.005/0.01/0.02/0.03/ 0.04/0.05(AHD model) |
|
| Rapid speed | Mm/min |
--(H/AH model) 460( AHR/AHD model) |
||
|
Grinding wheel |
Speed | rpm | 1450(50Hz) 1750(60Hz) | |
| Size | mm | 350x40x127 | ||
| Spindle motor | kw | 5.5 | ||
| Hydraulic motor | kw | 2.2 | ||
| Cooling pump motor | kw | 0.125 | ||
| Elevating motor | kw |
--(AH mode) 0.25(AHR mode) 0.5(AHD mode, servo motor) |
||
| Max loading capacity of table | Kg | 500 | 600 | |
| Total rated power | kw | 9 | ||
| Height of machine | mm | 1890 | ||
| Floor space(LxW) | mm | 3600x2400 | 4400x2400 | |
| Gross weight | kg | 3500 | 4000 | |
| Package dimensions(L x W x H) | mm | 2850x2270x2180 | 2950x2270x2210 | |
