WELDING AUXILIARY EQUIPMENTThe current position: HOME > PRODUCTS > WELDING AUXILIARY EQUIPMENT

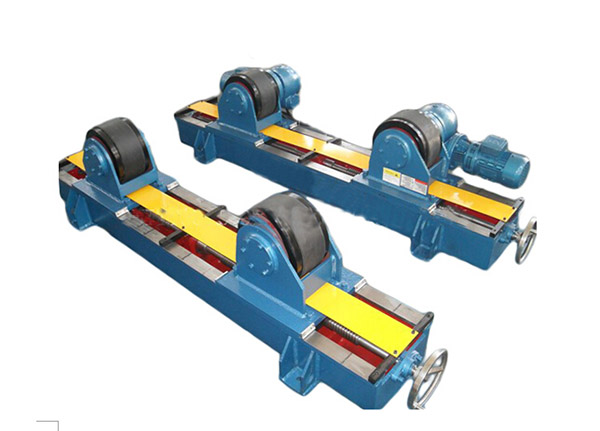

WELDING ROTATOR DSK


                Model

      Parameter		 DSK2 DSK5 DSK10 DSK20 DSK40 DSK60 DSK80 DSK100
Unit Loading (T) 2 5 10 20 40 60 80 100
Min Diameter (mm) Φ150 φ250 φ320 φ500 φ600 φ750 φ850 φ1000
Max Diameter(mm) Φ1800 φ2300 φ2800 φ3500 φ4200 Φ4800 φ5000 Φ5500
Rubber wheel diameter (mm) 200 250 300 350 400 450 500 550
Rubber wheel thickness (mm) 80 100 120 120 120 120 120 120
Metallic wheel diameter (mm) φ180 φ240 φ290 φ340 φ390 φ440 φ490 φ490
Metallic wheel thickness (mm) 20 20 25 30 40 50 60 80
Linear speed (m/h) 6-60
Motor power (kw) 2×0.18 2×0.37 2×0.55 2×1.1 2×1.5 2×2.2 2×2.2 2×2.2
Speed adjusting way VFD
