Technical Performance
※High precision end pre-bending
The straight edge length can be set freely, the upper roller press to pre-bend.
※NC control, high productivity
Parameters are controlled by NC, easy for operation, improve the productivity greatly.
※Good accuracy

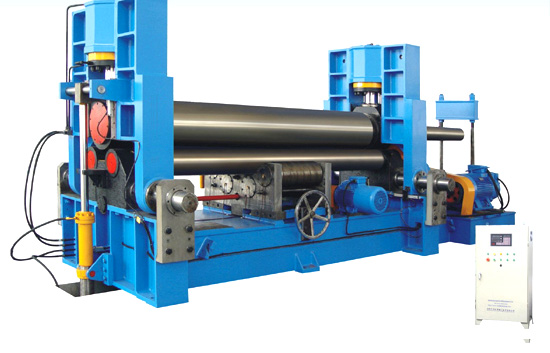

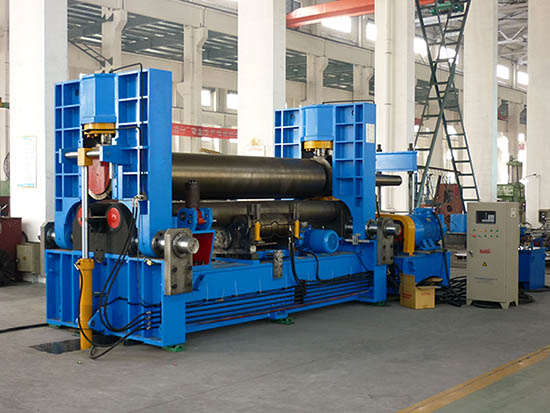

The upper roller is like a drum, the lower rollers assorted with it through support rollers. Bend continuously, can roll ideal products from thin to thick plates widely.
※Safety
The lower rollers are fixed, the upper roller move vertically and horizontally. The job does not move with the working rolle
※Complete structure, simple foundation, convenient move.
The machine has unitary basement, does not need earth bolts, has simple foundation, can move conveniently.
※Plenty of bending shapes
Can roll shapes of O, U, several R, taper in certain range.
Roll O shape: backside roll way
Roll U shape: front side roll way
Roll several R shapes: combined way.
Technical Parameter
| pec |
Pressure of Upperrollerl |
Max thickress | Max width（mm） |
Plate yield Limit (Mpa) |
max spec. min bending diameter (mm) |
Dia.of uperroller |
Dia.of lowerroller |
center distance of lower roller |
Rolling Speed |
Main Motor power |
|
| End（mm） | middle（mm） | ||||||||||
| W11SNC-15×2000 | 75 | 12 | 15 | 2000 | 245 | 600 | 255 | 150 | 245 | 4 | 7.5 |
| W11SNC-20×2000 | 100 | 16 | 20 | 2000 | 245 | 800 | 320 | 180 | 300 | 4 | 15 |
| W11SNC-20×2500 | 160 | 16 | 20 | 2500 | 245 | 800 | 330 | 180 | 300 | 4 | 15 |
| W11SNC-20×3000 | 200 | 16 | 20 | 3000 | 245 | 1000 | 375 | 200 | 330 | 4 | 22 |
| W11SNC-25×2500 | 230 | 20 | 25 | 2500 | 245 | 1200 | 410 | 235 | 380 | 4 | 30 |
| W11SNC-25×4000 | 270 | 20 | 25 | 4000 | 245 | 1400 | 490 | 250 | 400 | 4 | 30 |
| W11SNC-30×2500 | 270 | 25 | 30 | 2500 | 245 | 1200 | 250 | 400 | 4 | 30 | 30 |
| W11SNC-30×3000 | 320 | 25 | 30 | 3000 | 245 | 1200 | 450 | 250 | 420 | 4 | 37 |
| W11SNC-30×4000 | 380 | 25 | 30 | 4000 | 245 | 1400 | 550 | 275 | 460 | 4 | 45 |
| W11SNC-40×2500 | 380 | 32 | 40 | 2500 | 245 | 1400 | 520 | 290 | 500 | 4 | 45 |
| W11SNC-40×3000 | 430 | 30 | 40 | 3000 | 245 | 1600 | 550 | 290 | 500 | 4 | 55 |
| W11SNC-40X4000 | 540 | 30 | 40 | 4000 | 245 | 2000 | 630 | 340 | 610 | 3.5 | 55 |
| W11SNC-45X4000 | 610 | 35 | 45 | 4000 | 245 | 2000 | 660 | 360 | 650 | 3.5 | 75 |
| W11SNC-50X4000 | 690 | 40 | 50 | 4000 | 245 | 2000 | 700 | 380 | 700 | 3.5 | 75 |
| W11SNC-60X3000 | 690 | 50 | 60 | 3000 | 245 | 2000 | 700 | 380 | 700 | 3.5 | 75 |
| W11SNC-70X3000 | 850 | 60 | 70 | 3000 | 245 | 2200 | 700 | 420 | 780 | 3.5 | |
